  • P6.25 Outdoor SMD Rental LED Display Cabinet
  • P6.25 Outdoor SMD Rental LED Display Cabinet
P6.25 Outdoor SMD Rental LED Display CabinetP6.25 Outdoor SMD Rental LED Display Cabinet

P6.25 Outdoor SMD Rental LED Display Cabinet

  • Rental LED Display
  • Model: LLP-ORP6.25MM
  • Diecasting Aluminum Cabinet
  • Protection Rating: IP65/54
  • Product description: P6.25 outdoor SMD rental LED display is geared with standard 500mm x 500mm diecasting aluminium cabinet size. Each LED cabinet can install 4 250 x 250mm modules and can produce 80 x 80 dot resolution
  • INQUIRY

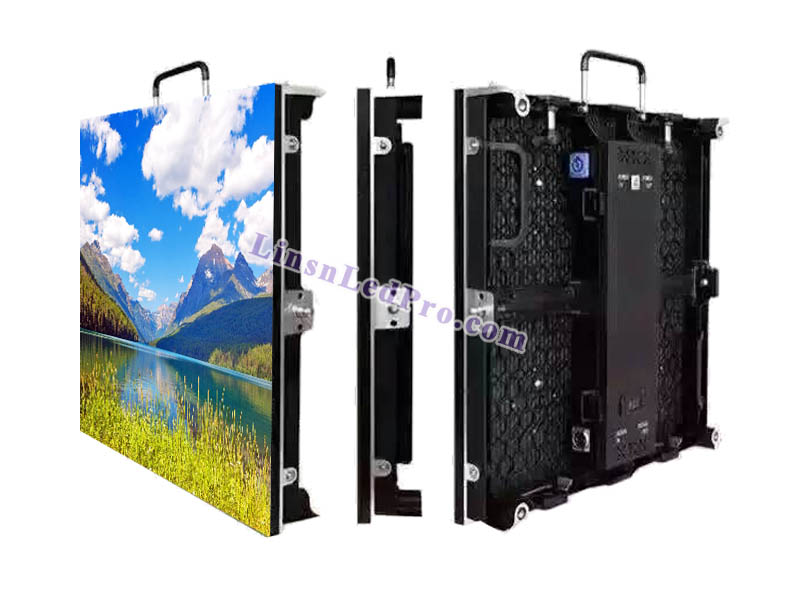

P6.25 Outdoor SMD Rental LED Display Cabinet

P6.25 outdoor SMD rental LED display is availabe in 500mmx 500mm or 500mm x 1000mm cabinet size for your choosing. P6.25mm rental LED display cabinet not only can deliver high image clarity but can also operate in all kinds of weather conditions for both indoor and outdoor events.

Features:

- Utra-high definition, 22,476 pixels per SQM;
- Superb white balance and wide view angles;
- High brightness and contrast ratio;
- IP65 rating, perfect for indoor & outdoor uses;
- Die-casting aluminum material, excellent heat dissipation;
- Exquisite appearance and seamless connection;
- Light weight, only 9KG, easy set up and tear down;
- The LED cabinet color can be custom as requested;
- The modules can be quickly dismantled for servicing;
- Support LINSN and other popular LED control systems.

Specifications:

1 Pixel pitch
6.25mm
2 Pixel density
25,600 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD3535 3in1

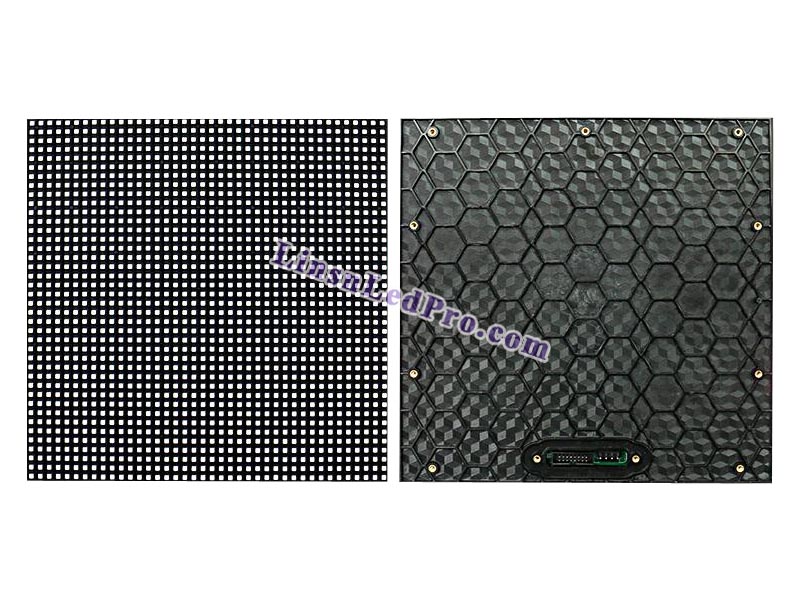

4 LED module size (L*H)
250*250mm
5 LED module resolution
40*40 pixels
6 LED cabinet size (L*H*D)
500*500*80mm
7 LED cabinet size resolution
80*80 pixels
8 LED display cabinet weight
9KG/panel
9 LED display cabinet material
Diecasting aluminum
10 Brightness
≥5,500 nits/sq.m
11 Driving method
1/5 scan
12 Viewing angle
140°H /140°V
13 Viewing distance
>3.8M
14 Refresh rate
≥1,000Hz
15 Grey scale
≥8,196 levels
16 Display colors
>16.7M
17 Power consumption
Max.:980W/sq.m, Avg.:392W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP65/54
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28 Compliant standard
CE/UL/RoHS
