P4.81 SMD Outdoor Rental LED Display
P4.81 SMD outdoor LED display is one of the most popular solutions for professional staging and rental applications requiring super high resolution and flicker free images at close and medium scale viewing distances.
Features:
- Utra-high definition, 43,264 pixels per SQM;
- Superb white balance and wide view angles;
- High brightness and contrast ratio;
- IP65 rating, perfect for indoor & outdoor uses;
- Die-casting aluminum material, excellent heat dissipation;
- Exquisite appearance and seamless connection;
- Light weight, only 9KG, easy set up and tear down;
- The modules can be quickly dismantled for servicing.
Specifications:
| 1 |
Pixel pitch |
4.81mm |
| 2 |
Pixel density |
43,264 pixels/sq.m |
| 3 |
Pixel configuration |
1R1G1B, SMD2727 3in1 |
| 4 |

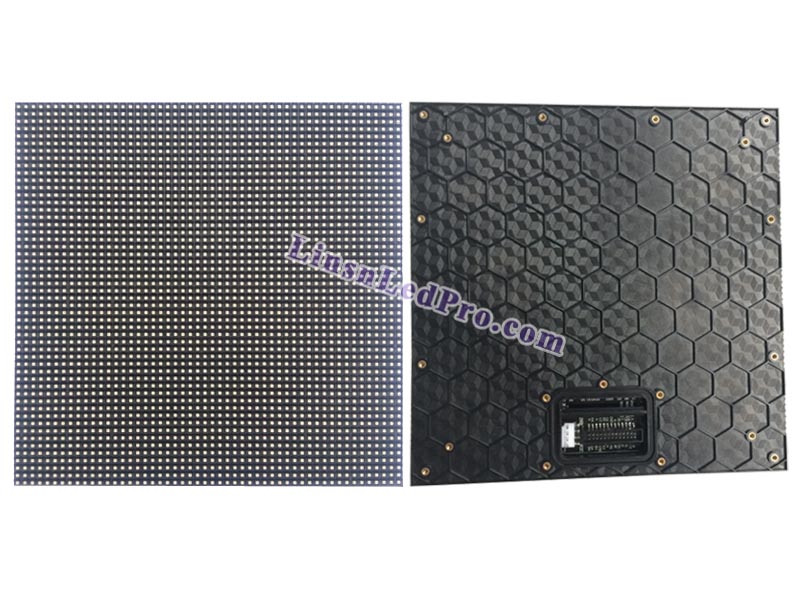

LED module size (L*H) |
250*250mm |
| 5 |
LED module resolution |
52*52 pixels |
| 6 |

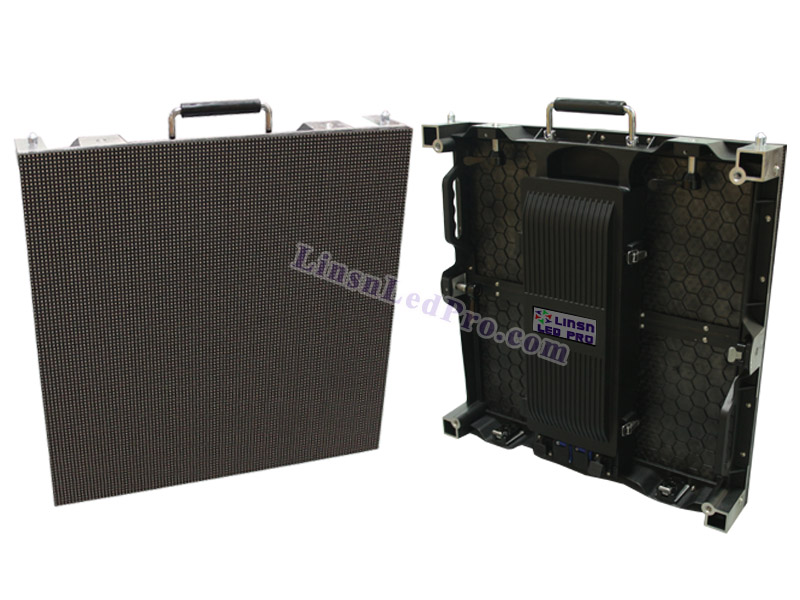

LED cabinet size (L*H*D) |
500*500*80mm or 500*1000*80mm |
| 7 |
LED cabinet resolution |
104*104 pixels |
| 8 | LED display cabinet weight |
8.5KG/panel |
| 9 |
LED display cabinet material |
Diecasting aluminum |
| 10 |
Brightness |
≥5,000 nits/sq.m |
| 11 |
Driving method |
1/13 scan |
| 12 |
Viewing angle |
140°H /140°V |
| 13 |
Viewing distance |
>2.8M |
| 14 |
Refresh rate |
≥1,200Hz |
| 15 |
Grey scale |
≥8,196 levels |
| 16 |
Display colors |
>16.7M |
| 17 |
Power consumption |
Max.:980W/sq.m, Avg.:392W/sq.m |
| 18 |
Input voltage |
110~230V/AC (±10%) |
| 19 |
Input power frequency |
50/ 60Hz |
| 20 |
IP rating (front/rear) |
IP65/54 |
| 21 |
Operating environment |
Temperature: -20°C~+50°C, Humidity: 10%~95% |
| 22 |
Storage environment |
Temperature:-40-50°C, Humidity: 10-90% |
| 23 |
Life span (50% brightness) |
≥100,000 hours |
| 24 |
Control system |
LINSN or other popular control systems |
| 25 |
Transmission distance |
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m |
| 26 |
Operating system |
Windows XP/Win7//8/Vista |
| 27 |
Video input/with video processor: Rgblink,Vdwall,Magnimage,etc |
VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc |
| 28 |
Compliant standard |
CE/UL/RoHS |
