Outdoor P5 SMD Rental LED Screen

  • Rental LED Screen
  • Model: LLP-ORP5MM
  • Pixels: 40,000 dots/sq.m
  • Protection Rating: IP65

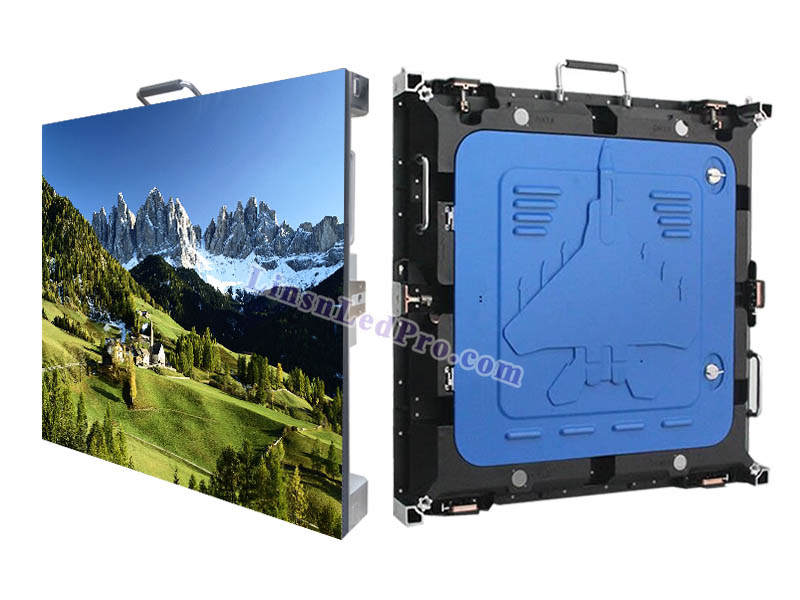

  • Product description: Outdoor P5 SMD rental LED screen is geared with 640mm x 640mm diecasting aluminium cabinet size. P5mm SMD rental LED panel can deliver 128 x128 pixel resolution.
  • INQUIRY

Outdoor P5 SMD Rental LED Screen

Outdoor P5 SMD rental LED screen panel is a superior solution for both indoor and outdoor events requiring extremely high resolution at very close viewing distance.

Features:

- Utra-high definition, 40,000 pixels per SQM;
- Superb white balance and wide view angles;
- High brightness and contrast ratio;

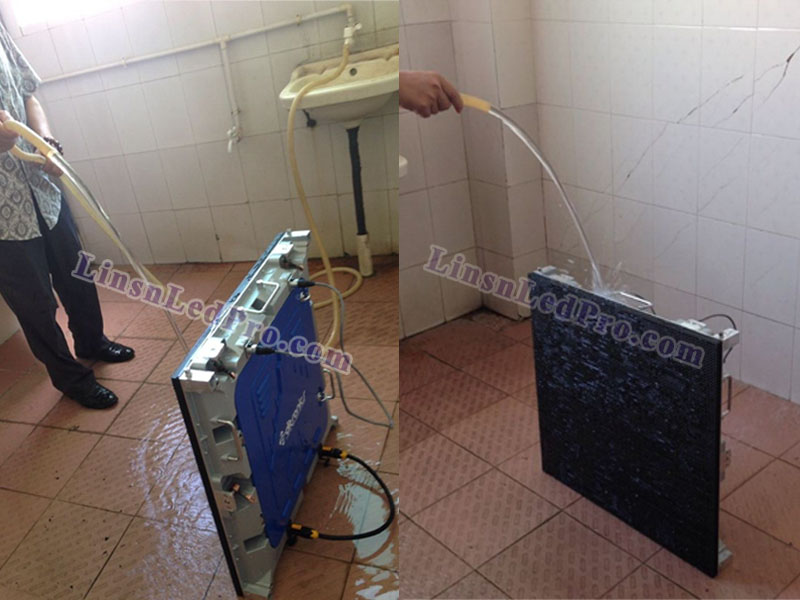

- IP65 rating, perfect for indoor & outdoor uses;
- Die-casting aluminum material, excellent heat dissipation;
- Exquisite appearance and seamless connection;
- The LED cabinet can be custom as requested;
- Light weight, only 13.5KG, easy set up and tear down;
- The modules can be quickly dismantled for servicing.

Specifications:

1 Pixel pitch
5mm
2 Pixel density
40,000 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD2727, 3in1

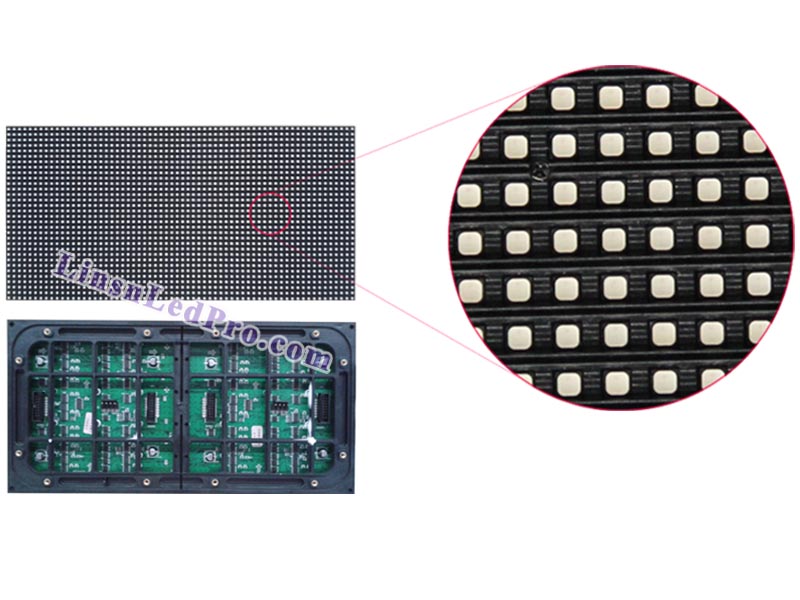

4 LED module size (L*H)
320*160mm
5 LED module resolution
64*32pixels
6 LED panel size (L*H*D)
640*640*80mm
7 LED panel resolution
128*128 pixels
8 LED screen panel weight
13.50KG/piece
9 LED screen panel material
Diecasting Aluminum
10 Brightness
≥6,500 nits/sq.m
11 Driving method
1/8 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
>5M
14 Refresh rate
≥1,000Hz
15 Grey scale
≥8,196 levels
16 Display colors
>16.7M
17 Power consumption
Max.:980W/sq.m, Avg.:392W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP65/54
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28 Compliant standard
CE/UL/RoHS
