Outdoor SMD P6.67 Rental LED Display Panel

  • Rental LED Display
  • Model: LLP-ORP6.67MM
  • Diecasting Aluminum Panel
  • View Angle: 140°H /140°V

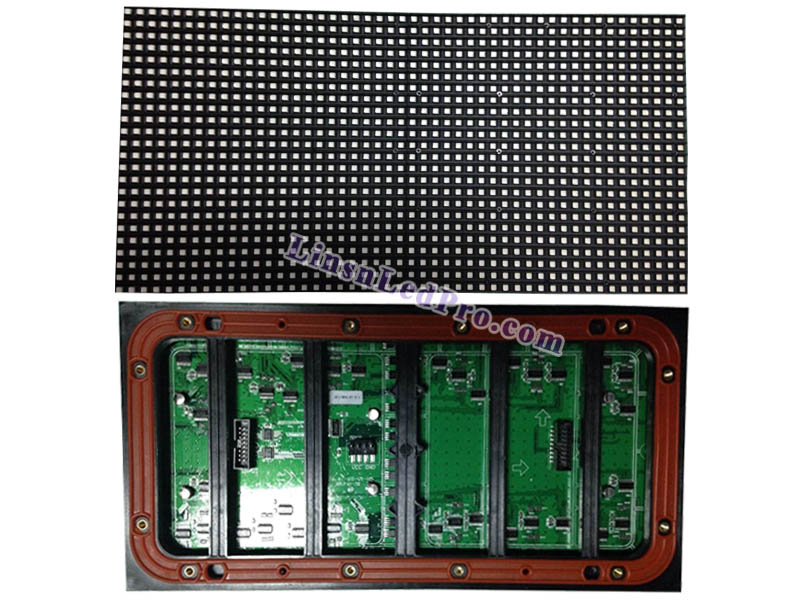

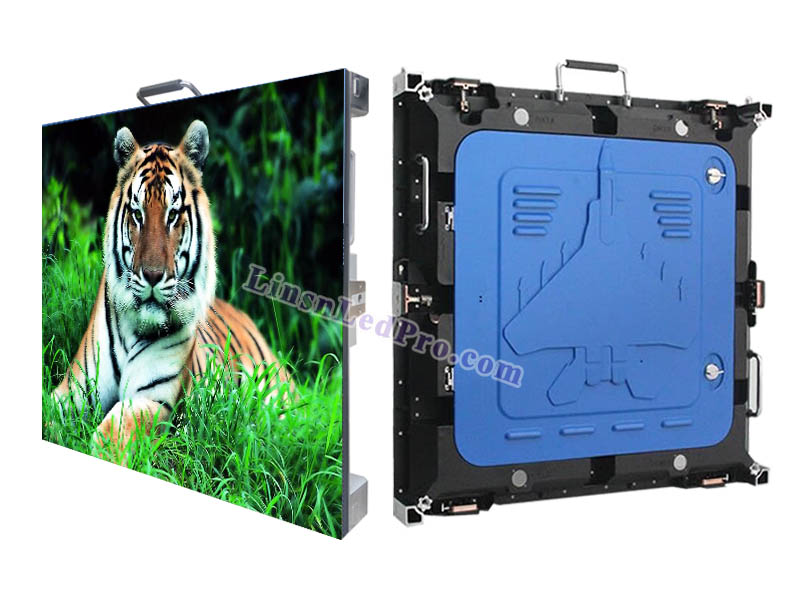

  • Product description: Outdoor SMD P6.67 rental LED display is made by 640x640x80mm diecasting aluminium panel size. Each LED panel can install 8 modules and can generate 96x96 dot resolution.
  • INQUIRY

Outdoor SMD P6.67 Rental LED Display Panel

This compact outdoor SMD P6.67 rental LED screen panel is highly weather resistent, which can be able to served for both indoor and outdoor events with various weather conditions. More importantly, P6.67mm can produce clear image details at close viewing distance even under directly sunlight.

Features:

- Utra-high definition, 22,476 pixels per SQM;
- Superb white balance and wide view angles;
- High brightness and contrast ratio;

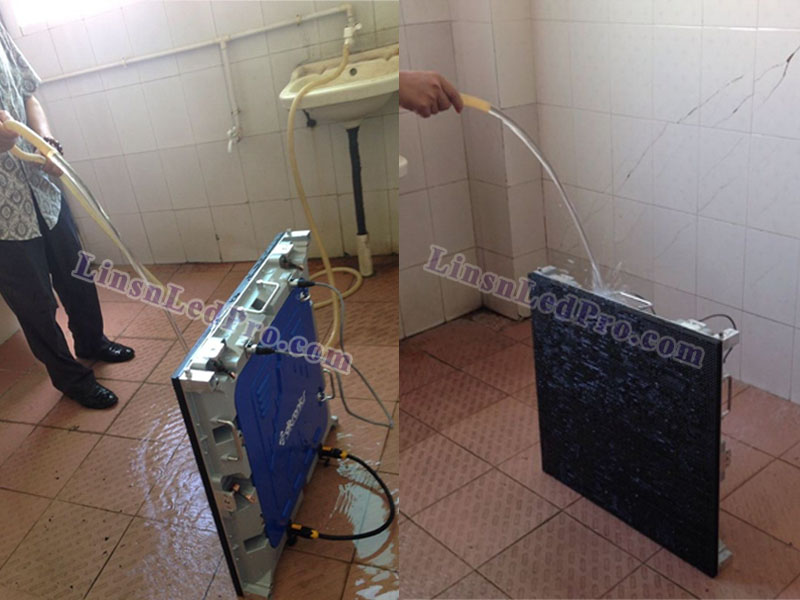

- IP65 rating, perfect for indoor & outdoor uses;
- Die-casting aluminum material, excellent heat dissipation;
- Exquisite appearance and seamless connection;
- Light weight, only 13.5KG, easy set up and tear down;
- The LED cabinet color can be custom as requested;
- The modules can be quickly dismantled for servicing;
- Support LINSN and other popular LED control systems.

Specifications:

1 Pixel pitch
6.67mm
2 Pixel density
22,476 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD3535, 3in1
4 LED module size (L*H)
320*160mm
5 LED module resolution
48*24 pixels
6 LED panel size (L*H*D)
640*640*80mm
7 LED panel resolution
96*96 pixels
8 LED display panel weight
13.50KG/piece
9 LED display panel material
Diecasting Aluminum
10 Brightness
≥6,000 nits/sq.m
11 Driving method
1/6 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
>6.6M
14 Refresh rate
≥1,000Hz
15 Grey scale
≥8,196 levels
16 Display colors
>16.7M
17 Power consumption
Max.:980W/sq.m, Avg.:392W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP65/54
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28 Compliant standard
CE/UL/RoHS
