P8.9mm SMD Outdoor LED Curtain Display Wall

  • LED Curtain Display
  • Model: LLP-RP8.928MM
  • Pixels: 12,544 dots/sq.m
  • Brightness: ≥4,000 nits/sq.m
  • Product description: P8.9mm LED curtain display wall is spcecially created to deliver super high resolution with see through (transparent) effects, which is a perfect fit for both indoor and outdoor high end staging and r
  • INQUIRY

P8.9mm SMD Outdoor LED Curtain Display Wall

Features:

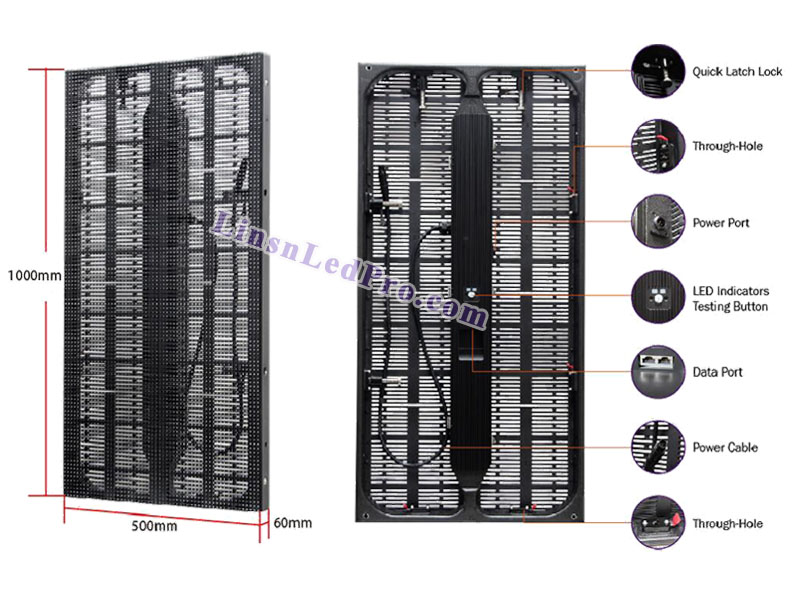

- Ultra light and slim thickness: 7.5KG and 60mm per panel;
- Fast locks: easy to set up and tear down, save manpower;
- Excellent heat dissipation: aluminum material with high transparency allows air to flow through, natural cooling without air-conditioning;
- Precise positioning: each panel is removable from whole screen by adopting spiral locating pin;
- Seamless connection: surface tolerance is less than 0.2mm;
- Multi-function: geared with movable lighting barriers, transparency is adjustable to achieve various effects

Specifications:

1 Pixel pitch
8.9mm (8.928mm)
2 Pixel density
12,544 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD2525, 3in1
5 LED module resolution
28*56 pixels
6 LED panel size (L*H*D)
500*1000*60mm or 500*500*60mm
7 LED Panel resolution
56*112 pixels
8 LED curtain wall panel weight
7.5KG/piece
9 LED curtain wall panel material
Carbon fiber
10 Brightness
≥4,000 nits/sq.m
11 Driving method
1/8 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
>8.9M
14 Refresh rate
≥1,200Hz
15 Grey scale
≥4,096 levels
16 Display colors
>16.7M
17 Power consumption
Max.:600W/sq.m, Avg.:240W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP65/IP54
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28 Compliant standard
CE/UL/RoHS
