P4 SMD Outdoor HD LED Display BoardP4 SMD Outdoor HD LED Display Board

P4 SMD Outdoor HD LED Display Board

  • Outdoor LED Display
  • Model: LLP-OSFP4MM
  • Pixels: 62,500 dots/sq.m
  • Protection Rating: IP65

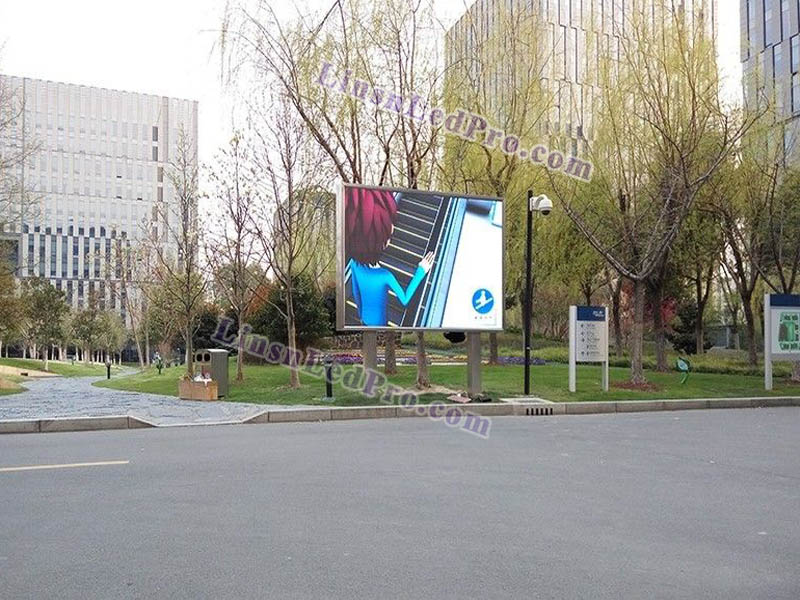

  • Product description: The ultimate P4 SMD full color outdoor HD LED display board is a premium choice for outdoor installation at airports, shopping malls, railway stations, plazas, stadiums, theme parks, schools, real est

P4 SMD Outdoor HD LED Display Board

Equipped with waterproof SMD2727 LEDs and 62,500 pixels per sq.m, the industry leading P4mm SMD 3in1 full color outdoor HD LED display board can be exposed in all kinds of severe environments and present ultra high image clarity with extra wide viewing angle, which is a high end solution for outdoor applications.


- Ultra high resolution and brightness;
- Wide viewing angles and excellent color uniformity;
- Stable performance and great heat dissipation;
- Easy installation and less maintenance;
- Low Power consumption and long life span;
- IP65/54 protection rating to perfectly work in all weather conditions;
- Synchronous control with PC or asynchronous mode without PC for small size screens;
- Brightness is adjustable manually or automatically against to light changing;
- All programs can be digitally edited and played in a loop automatically on the timetable;
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);
- Can be controlled and monitored with camera at any time & anywhere via internet access;
- Online detecting and fault informing is optional with monitored card;
- Supports all windows operation systems-XP,7/8,Vista for its software.


1 Pixel pitch
2 Pixel density
62,500 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD1921, 3in1

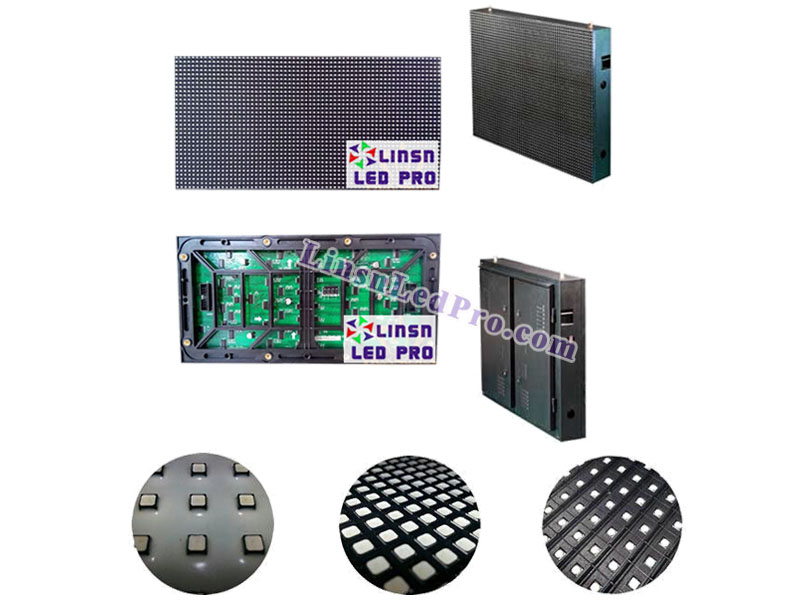

4 LED module size (L*H)
5 LED module resolution
64*32 pixels
6 LED panel size (L*H*D)
768*768*155mm or as needed
7 LED panel resolution
192*192 pixels
8 LED display board panel weight
65 KG/sq.m
9 LED display board panel material
Cold rolled steel sheet
10 Brightness
≥6,800 nits/sq.m
11 Driving method
1/8 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
14 Refresh rate
15 Grey scale
≥8,192 levels
16 Display colors
17 Power consumption
Max.:1,000W/sq.m, Avg.:400W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista

Video input/with video processor:



28 Compliant standard
