Outdoor P5 SMD Full Color LED Display Monitor

  • Outdoor LED Display
  • Pixels: 40,000 dots/sq.m
  • Brightness: 7,000 nits/sq.m
  • Product description: Outdoor P5 SMD full color LED display monitor features 40,000 pixels and 7,000 nits per sqm, exceptionally consistent colors, large viewing angles-140°H /140°V, low power consumption, less maintenance

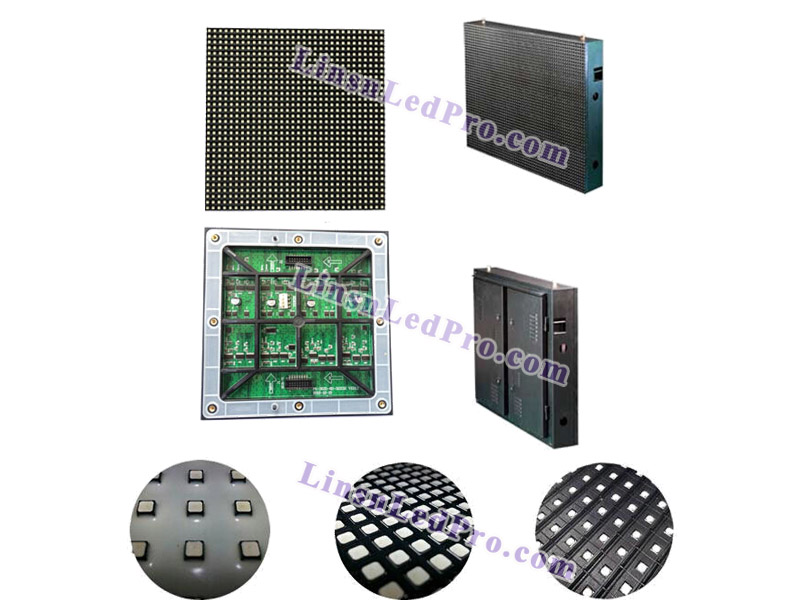

Outdoor P5 SMD Full Color LED Display Monitor

Outdoor P5mm SMD Full color LED display monitor is a superior solution for digital out of home (advertising), outdoor branding requiring extremely high resolution at closest viewing distances.


- Ultra high resolution and brightness;
- Wide viewing angles and excellent color uniformity;
- Stable performance and great heat dissipation;
- Easy installation and less maintenance;
- Low Power consumption and long life span ;
- IP65/54 protection rating to perfectly work in all weather conditions;
- Synchronous control with PC or asynchronous mode without PC for small size screens;
- Brightness is adjustable manually or automatically against to light changing;
- All programs can be digitally edited and played in a loop automatically on the timetable;
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);
- Can be controlled and monitored with camera at any time & anywhere via internet access;
- Online detecting and fault informing is optional with monitored card;
- Supports all windows operation systems-XP,7/8,Vista for its software.


1 Pixel pitch
2 Pixel density
40,000 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD3535, 3in1
4 Module size(L*H)
5 Module resolution
32*32 pixels
6 Panel size(L*H*D)
800*800*155mm or as needed
7 Panel resolution
160*160 pixels
8 LED cabinet weight
65 KG/sq.m
9 LED display panel material
Cold rolled steel sheet
10 Brightness
≥7,000 nits/sq.m
11 Driving method
1/8 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
14 Refresh rate
15 Grey scale
≥8,192 levels
16 Display colors
17 Power consumption
Max.:1,000W/sq.m, Avg.:400W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista

Video input/with video processor:



28 Compliant standard
