P8 SMD Outdoor LED Display Billboard P8 SMD Outdoor LED Display Billboard

P8 SMD Outdoor LED Display Billboard

  • Outdoor LED Display
  • Model: LLP-OSFP8MM
  • View Angle:140°H /140°V
  • Brightness: 7,500 nits/sq.m
  • Product description: P8 SMD outdoor LED display billboard equipped with SMD3535 waterproof LED lamps can generate extra wide viewing angles besides the same functions of those basic DIP displays.
  • INQUIRY

P8 SMD Outdoor LED Display Billboard

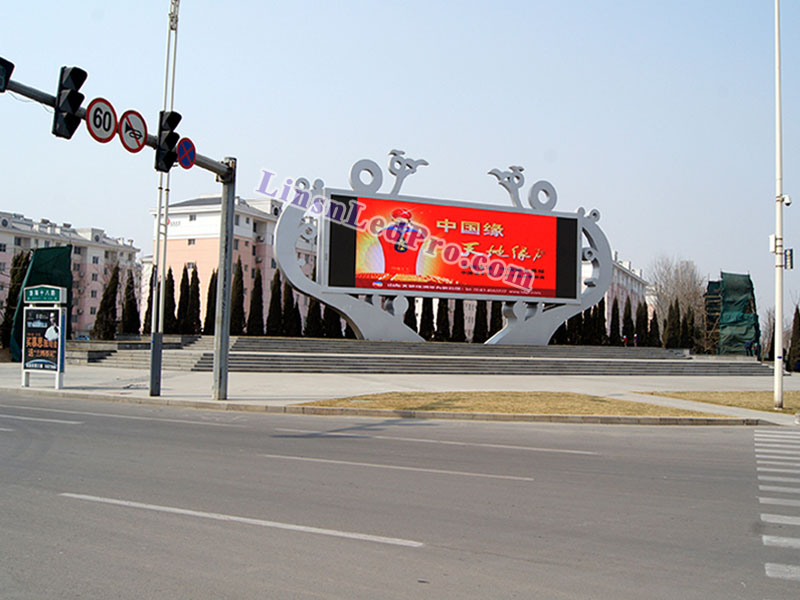

P8 SMD Outdoor LED Display billboard is increasingly becoming a perfect solution for outdoor electronic advertising campaigns requiring extreme image details at close or medium distances.

Features:

- Easy installation and less maintenance;
- Wide viewing angles and excellent color uniformity;
- Stable performance and great heat dissipation;
- Low Power consumption and long life span ;
- IP65/54 protection rating to perfectly work in all weather conditions;
- Synchronous control with PC or asynchronous mode without PC for small size screens;
- Brightness is adjustable manually or automatically against to light changing;
- All programs can be digitally edited and played in a loop automatically on the timetable;
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);
- Can be controlled and monitored with camera at any time & anywhere via internet access;
- Online detecting and fault informing is optional with monitored card;
- Supports all windows operation systems-XP,7/8,Vista for its software.

Specifications:

1 Pixel pitch
P8mm
2 Pixel density
15,625 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD3535 3in1
4 LED module size (L*H)
256*128mm or 320x 160mm
5 LED module resolution
32*16 pixels
6 LED cabinet size (L*H*D)
1024*1024*155mm or as needed
7 LED cabinet resolution
128*128 pixels
8 LED display cabinet weight
65 KG/sq.m
9 LED billboard cabinet material
Cold rolled steel sheet
10 Brightness
≥7,500 nits/sq.m
11 Driving method
1/8 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
>8M
14 Refresh rate
>600Hz
15 Grey scale
≥8,192 levels
16 Display colors
>16.7M
17 Power consumption
Max.:1,000W/sq.m, Avg.:400W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP65/IP54
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc

28 Compliant standard
CE/UL/RoHS
