Outdoor P10 SMD RGB Electronic LED ScreenOutdoor P10 SMD RGB Electronic LED Screen

Outdoor P10 SMD RGB Electronic LED Screen

  • Outdoor LED Screen
  • Model: LLP-OSFP10MM
  • Brightness ≥7,000 nits/sq.m
  • View Angle: 140°H /140°V
  • Product description: Outdoor P10 SMD RGB electronic LED screen features high resolution, high brightness,wide view angle, low power consumption, less mainteance, etc. It is an excellent choice for outdoor fixed installati

Outdoor P10 SMD RGB Electronic LED Screen

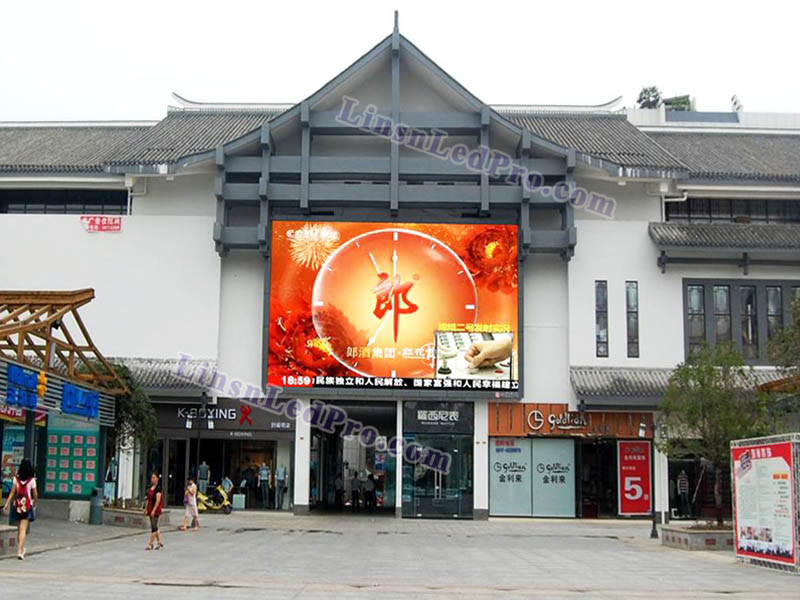

The affordable outdoor P10 SMD RGB electronic LED screen can present ultra-wide viewing angles, spectacular white balance and high contrast ratio besides the characteristics of traditional DIP panels. P10 SMD LED screen is now becoming more and more popular for fixed installations such as airports, shopping malls, railway stations, plazas, stadiums, theme parks, schools, real estates, etc


- Ultra high resolution and brightness;
- Wide viewing angles and excellent color uniformity;
- Stable performance and great heat dissipation;
- Easy installation and less maintenance;
- Low Power consumption and long life span;
- IP65/54 protection rating to perfectly work in all weather conditions;
- Synchronous control with PC or asynchronous mode without PC for small size screens;
- Brightness is adjustable manually or automatically against to light changing;
- All programs can be digitally edited and played in a loop automatically on the timetable;
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);
- Can be controlled and monitored with camera at any time & anywhere via internet access;
- Online detecting and fault informing is optional with monitored card;
- Supports all windows operation systems-XP,7/8,Vista for its software.


1 Pixel pitch
2 Pixel density
10,000 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD3535, 3in1

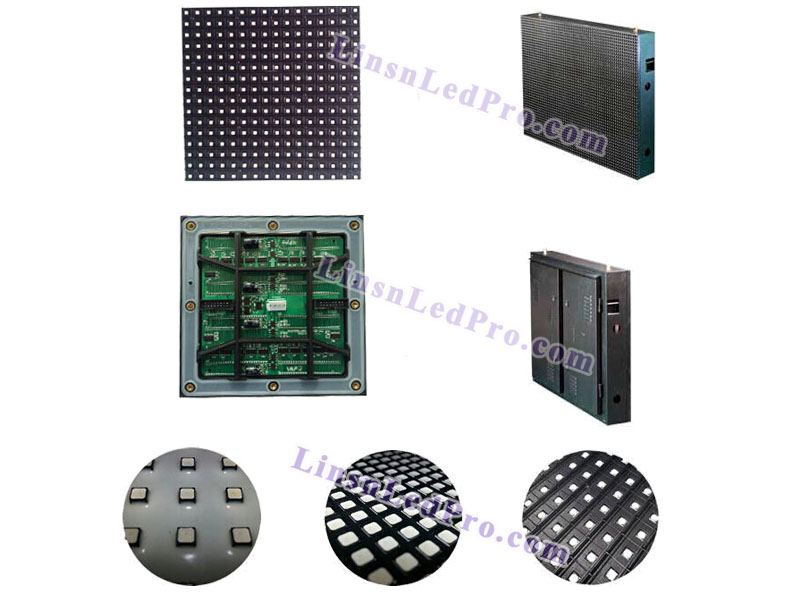

4 LED module size (L*H)
160*160mm or 320 x 160mm
5 LED module resolution
16*16 pixels
6 LED panel size (L*H*D)
960*960*155mm or as needed
7 LED panel resolution
96*96 pixels
8 LED screen panel weight
65 KG/sq.m
9 LED screen panel material
Cold rolled steel sheet
10 Brightness
≥7,000 nits/sq.m
11 Driving method
1/4 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
14 Refresh rate
15 Grey scale
≥8,192 levels
16 Display colors
17 Power consumption
Max.:1,000W/sq.m, Avg.:400W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista

Video input/with video processor:



28 Compliant standard
