P6mm SMD Outdoor Digital LED Display

  • Outdoor LED Display
  • Model: LLP-OSFP6MM
  • Pixels: 27,777 dots/sq.m
  • Controller: LINSN or Others

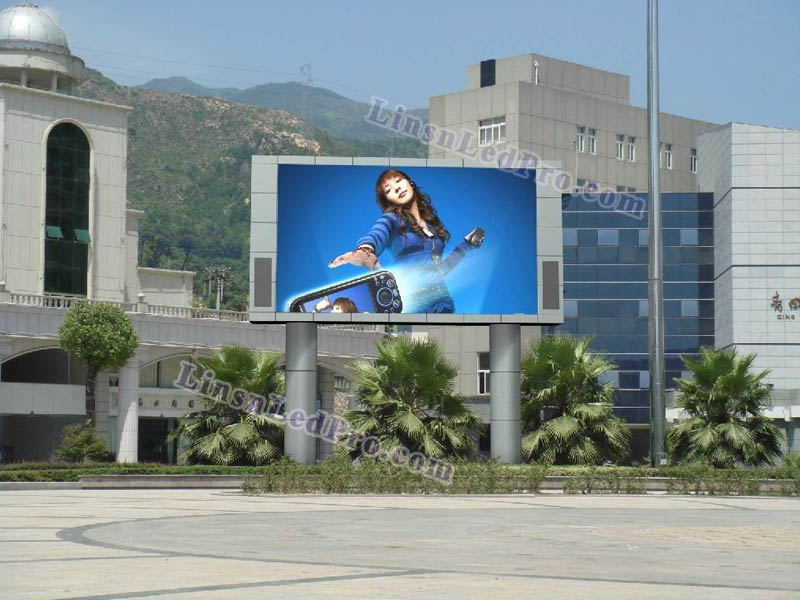

  • Product description: P6mm SMD outdoor digital LED display is a superior solution for outdoor installation at airports, shopping malls, railway stations, plazas, stadiums, theme parks, schools, real estates, etc.

P6mm SMD Outdoor Digital LED Display

Geared with 27,777 pixels and 6500 nit brightness /sq.m, P6mm SMD Outdoor Digital LED Display can deliver clearest image or video quality effects at very close viewing distances in any weather conditions. Besides, its SMD3535 3in1 LEDs can present ultra wide visual angles of 140° /140° (H/V) that allows the maximum audience viewing. Thanks to these exellent characteristics, P6 SMD outdoor LED display is currently becoming a premium solution for outdoor fixed applications.


- Ultra high resolution and brightness
- Wide viewing angles and excellent color uniformity
- Stable performance and great heat dissipation
- Easy installation and less maintenance
- Low Power consumption and long life span
- IP65/54 protection rating to perfectly work in all weather conditions
- Synchronous control with PC or asynchronous mode without PC for small size screens
- Brightness is adjustable manually or automatically against to light changing.
- All programs can be digitally edited and played in a loop automatically on the timetable.
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc)
- Can be controlled and monitored with camera at any time & anywhere via internet access.
- Online detecting and fault informing is optional with monitored card.
- Supports all windows operation systems-XP,7/8,Vista for its software


1 Pixel pitch
2 Pixel density
27,777 pixels/sq.m

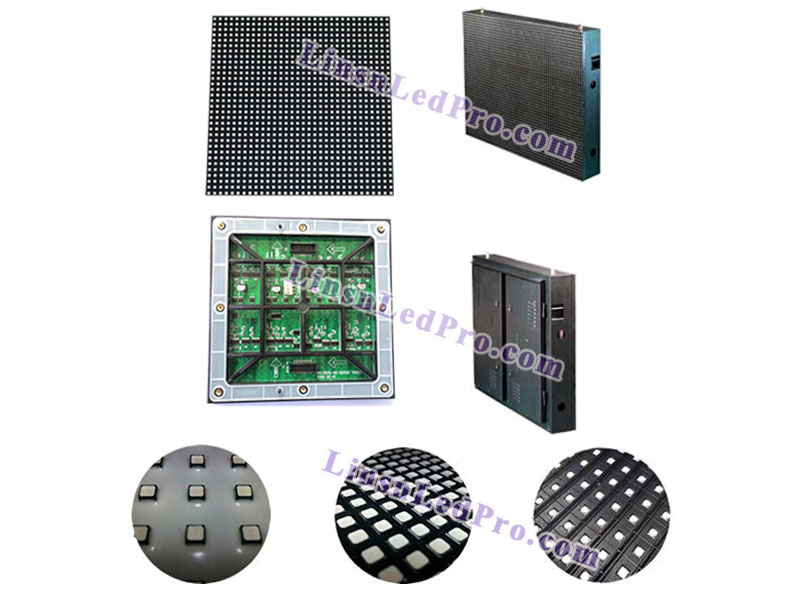

3 Pixel configuration
1R1G1B, SMD3535, 3in1
4 LED module size (L*H)
5 LED module resolution
32*32 pixels
6 LED cabinet size (L*H*D)
768*768*155mm or as needed
7 LED cabinet resolution
128*128 pixels
8 LED display cabinet weight
65 KG/sq.m
9 LED display cabinet material
Cold rolled steel sheet
10 Brightness
≥6,500 nits/sq.m
11 Driving method
1/8 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
14 Refresh rate
15 Grey scale
≥8,192 levels
16 Display colors
17 Power consumption
Max.:1,000W/sq.m, Avg.:400W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista

Video input/with video processor:



28 Compliant standard
