  • Outdoor P12 SMD Full Color LED Display Sign
  • Outdoor P12 SMD Full Color LED Display Sign
Outdoor P12 SMD Full Color LED Display SignOutdoor P12 SMD Full Color LED Display Sign

Outdoor P12 SMD Full Color LED Display Sign

  • Outdoor LED Display
  • Model: LLP-OSFP12MM
  • Protection Rating: IP65
  • View Angle: 140°H /140°V
  • Product description: Outdoor P12 SMD full clor LED display sign excels in color uniformity, contrast ratio, viewing angles, electricity saving, etc. P12 is ideally suited for applications in outdoor branding and advertisi

Outdoor P12 SMD Full Color LED Display Sign

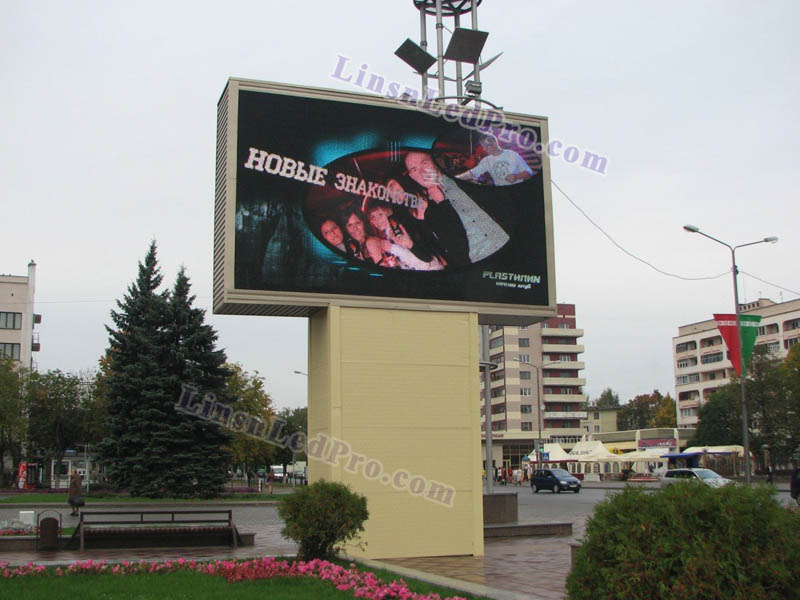

It is widely placed outdoor fixed applications requring clear image details and large view angles at close and medium viewing distances.


- Easy installation and less maintenance;
- Wide viewing angles and excellent color uniformity;
- Stable performance and great heat dissipation;
- Low Power consumption and long life span;
- IP65/54 protection rating to perfectly work in all weather conditions;
- Synchronous control with PC or asynchronous mode without PC for small size screens;
- Brightness is adjustable manually or automatically against to light changing;
- All programs can be digitally edited and played in a loop automatically on the timetable;
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);
- Can be controlled and monitored with camera at any time & anywhere via internet access;
- Online detecting and fault informing is optional with monitored card;
- Supports all windows operation systems-XP,7/8,Vista for its software.


1 Pixel pitch
2 Pixel density
6,944 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD3535 3in1

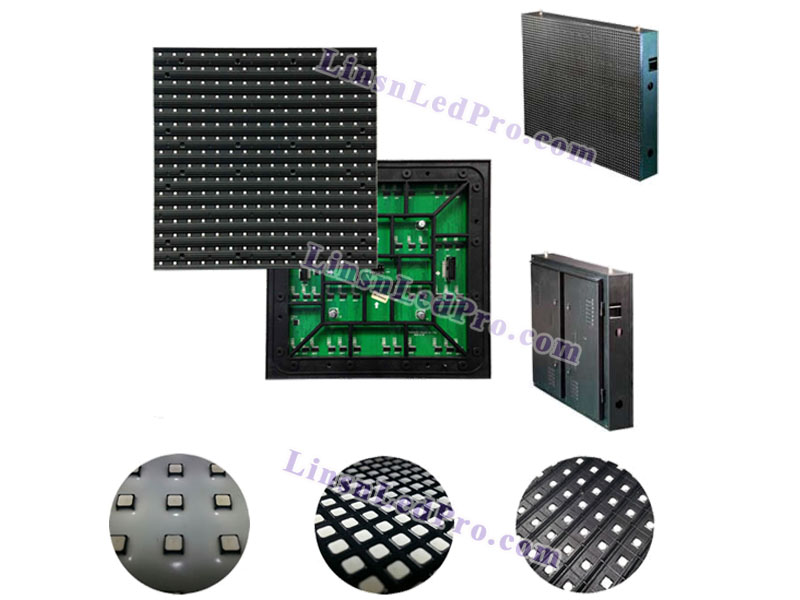

4 LED module size (L*H)
5 LED module resolution
16*16 pixels
6 LED cabinet size (L*H*D)
960*960*155mm or as needed
7 LED cabinet resolution
80*80 pixels
8 LED display sign cabinet weight
9 LED display sign cabinet material
Cold rolled steel sheet
10 Brightness
≥5,500 nits/sq.m
11 Driving method
1/4 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
14 Refresh rate
15 Grey scale
≥8,192 levels
16 Display colors
17 Power consumption
Max.:1,000W/sq.m, Avg.:400W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista

Video input/with video processor:



28 Compliant standard
