P6.67 SMD Indoor Flexible LED Screen

Creative LED Display
Model: LLP-ICSP6.67
DIY Soft LED Module
Pixels:22,500 pixels/sq.m
Product description: P6.67 SMD Indoor flexibleLED screen made by LINSN LED PRO can be installed in almost any indoor places that you could imagine for a soft HD video display wall.
INQUIRY

P6.66 SMD Indoor Flexible LED Screen

Features:

- Equipped with rubber faced, bendy, magnetic and silent design;

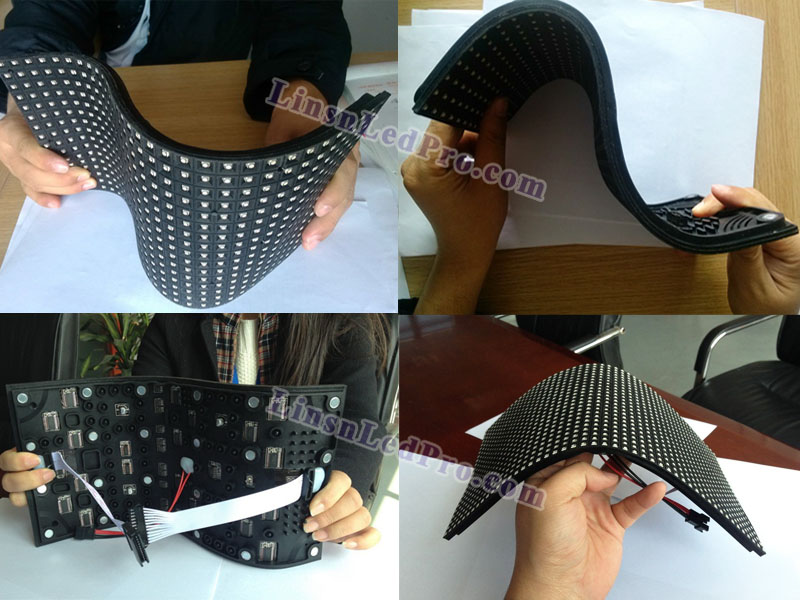

- Super flexible---flat, curved or circular shape can all be easily set up;
- Cost effective and excellent performance;
- Ultra thin and light, 15mm depth and 0.65kg per module;
- Less power consumption and superb heat dissipation;
- Easy Installation---magnetic design enables to attach on any mental sheet;
- The structure can be purchased along with the screen or sorted out locally;
- Multi-function---a small module in hand to meet your Do-it-Yourself demands.

Specifications:

1	Pixel pitch	6.67mm
2	Pixel density	22,500 pixels/sq.m
3	Pixel configuration	1R1G1B, SMD3528, 3in1
4	Module size(L*H)	320*160mm
5	Module resolution	48*24 pixels
6	Panel size(LHD)	Flexible, as needed
7	Panel resolution	Flexible, as needed
8	Flexible LED screen weight	45KG/sq.m with cabinet
9	LED screen cabinet material	Iron
10	Brightness	≥1,300 nits/sq.m
11	Driving method	1/12 scan
12	Viewing angle	140°H /140°V
13	Best viewing distance	>6.6M
14	Refresh rate	≥1,200Hz
15	Grey scale	≥4,096 levels
16	Display colors	>16.7M
17	Power consumption	Max.: 800W/sq.m, Avg.:320W/sq.m
18	Input voltage	110~230V/AC (±10%)
19	Input power frequency	50/ 60Hz
20	IP rating (front/rear)	IP43
21	Operating environment	Temperature: -20°C~+50°C, Humidity: 10%~95%
22	Storage environment	Temperature:-40-50°C, Humidity: 10-90%
23	Life span (50% brightness)	≥100,000 hours
24	Control system	LINSN or other popular control systems
25	Transmission distance	Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26	Operating system	Windows XP/Win7//8/Vista
27	Video input/with video processor: Rgblink,Vdwall,Magnimage,etc	VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28	Compliant standard	CE/UL/RoHS
