P4.81 SMD Indoor Rental LED Display

  • Rental LED Display
  • Application: indoor
  • Diecasting Aluminum Panel
  • Leadtime: within 18 Days
  • Product description: P4.81 SMD indoor rental LED display can deliver much richer and deep color effects besides crystal clear image details. Cabinet size can be 500mm x1000mm or 500mm x 500mm.
  • INQUIRY

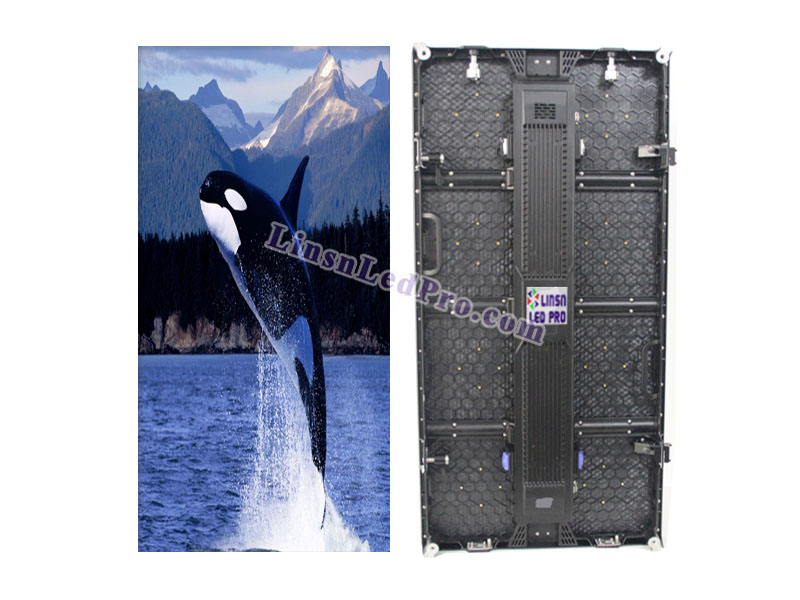

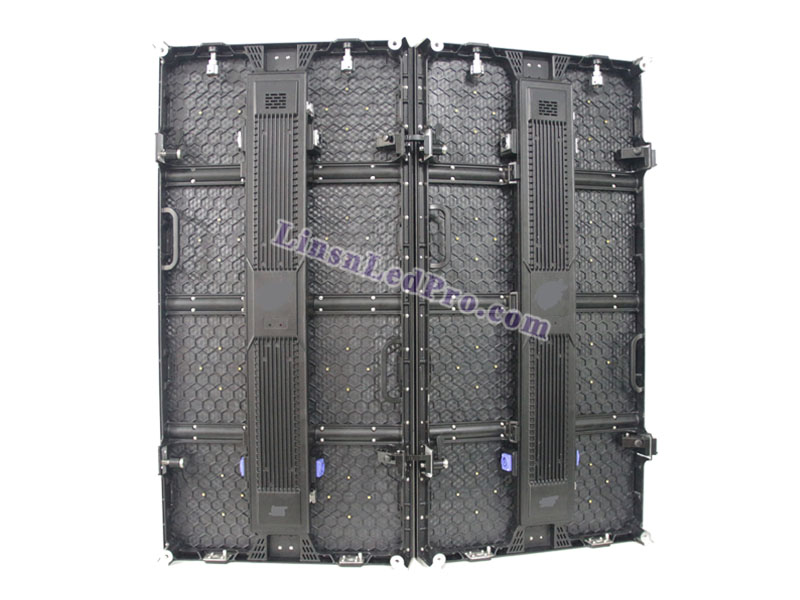

P4.81 SMD Indoor Rental LED Display

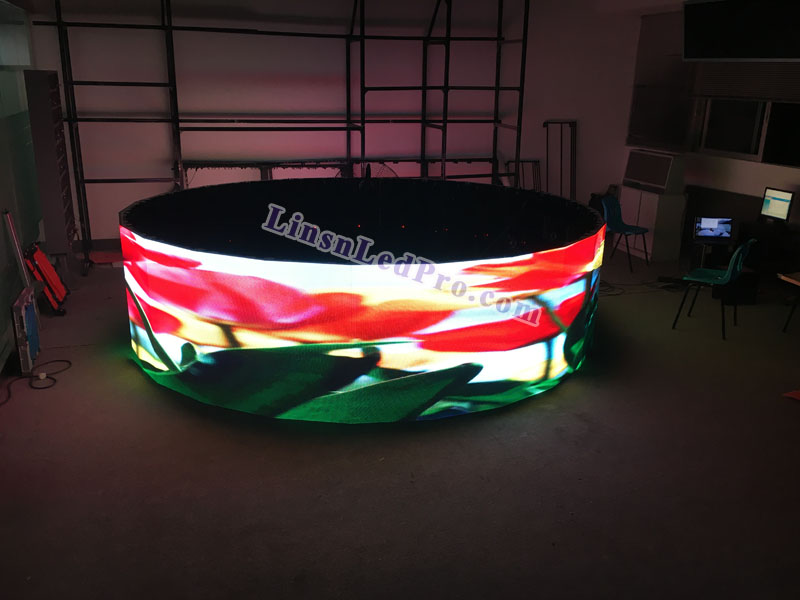

Geard with angle adjustors, this compact P4.81 SMD indoor rental LED panel can be set up as curved or circular display as needed with its 500x 1000mm or 500 x 500mm panel size.

Features:

- Super high definition, 43,222 pixels per square meter;
- Ultra light and slim, only 13KG and 80mm depth;
- Easy set up with fast locks and less maintenance;
- Refresh rate with up to 2,000Hz & up to 98% for luminous efficiency;
- With strengthening rigs, much stronger and also be used as carry handles;

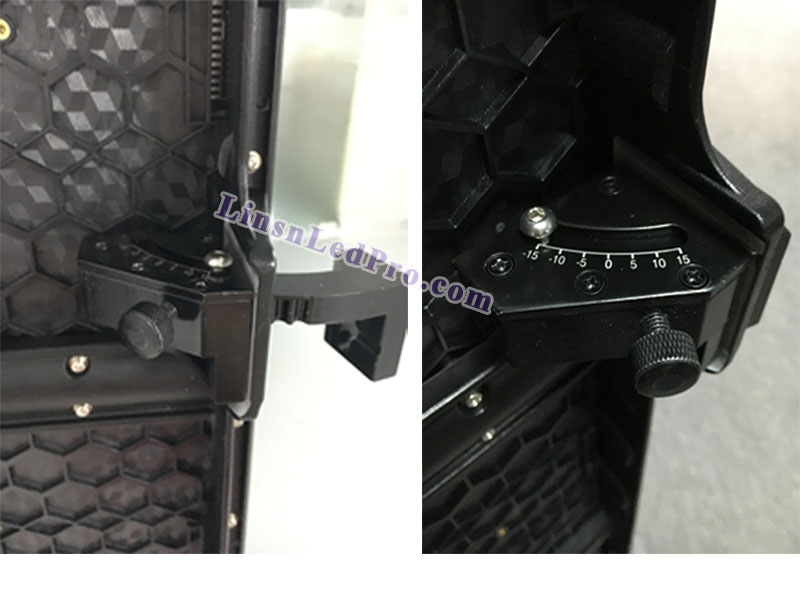

- Supports +-15 degree radian conjunction with angle regulators;
- LED lights on rear cover to indicate working status;
- Noiseless design and speedy heat vending enables longer lifespan;
- Can vertically hang up 18 panels with truss bar;
- Ideally suited for both fixed and rental applications.

Specifications:

1 Pixel pitch
4.81mm
2 Pixel density
43,222 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD2121 3in1

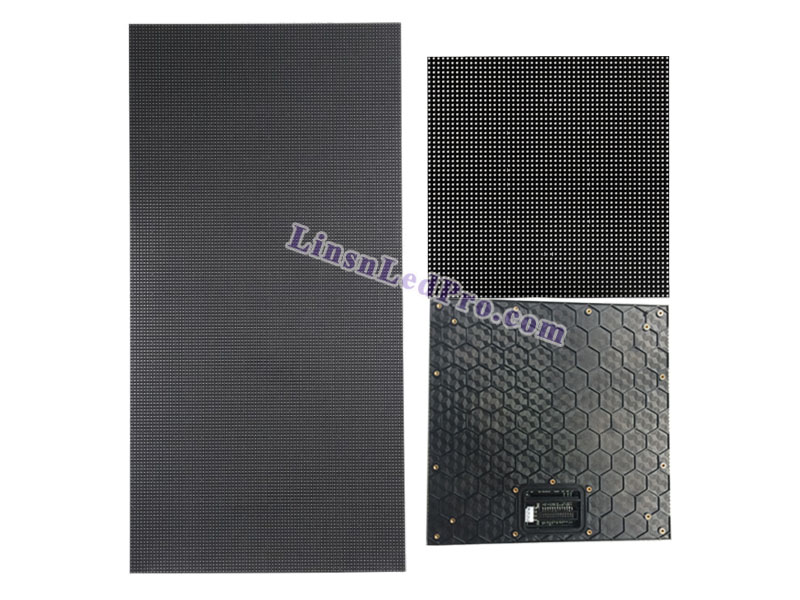

4 LED module size (L*H)
250*250mm
5 LED module resolution
52*52 pixels
6 LED cabinet size (L*H*D)
500*1000*80mm or 500*500*80mm
7 LED  cabinet resolution
104*208 pixels
8 LED display cabinet weight
13.50KG/panel
9 LED display cabinet material
Diecasting Aluminum
10 Brightness
≥1,400 nits/sq.m
11 Driving method
1/13 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
>4.8M
14 Refresh rate
1,920Hz
15 Grey scale
≥4,096 levels
16 Display colors
>16.7M
17 Power consumption
Max.:1,100W/sq.m, Avg.:440W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP43
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28 Compliant standard
CE/UL/RoHS
