Indoor P10 SMD Soft LED Display

  • Creative LED Display
  • Model: LLP-ICSP10
  • DIY Soft LED Module
  • Controller: LINSN or Others
  • Product description: LINSN LED PRO supplies high quality indoor P10 SMD soft LED display. P10mm flexible LED display can do flat, curved or circular shape.
  • INQUIRY

Indoor P10 SMD Soft LED Display

Features:

- Equipped with rubber faced, bendy, magnetic, and silent design;

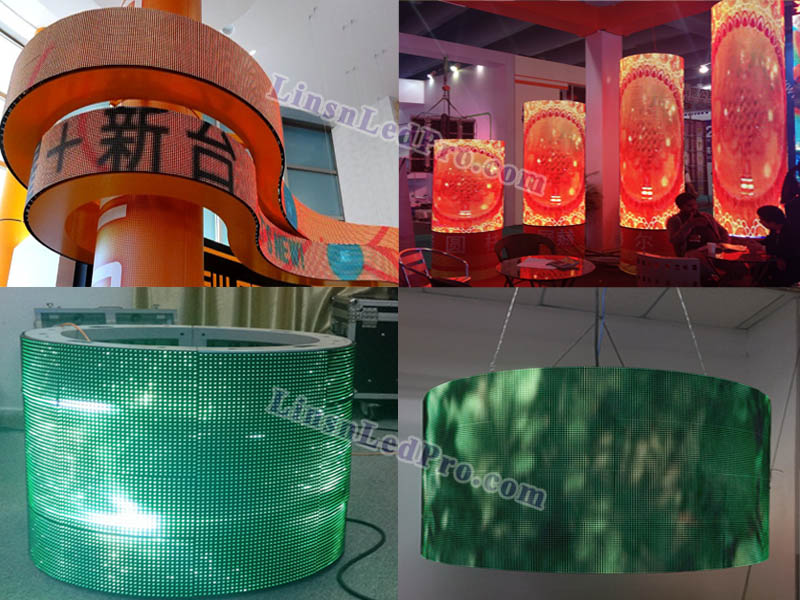

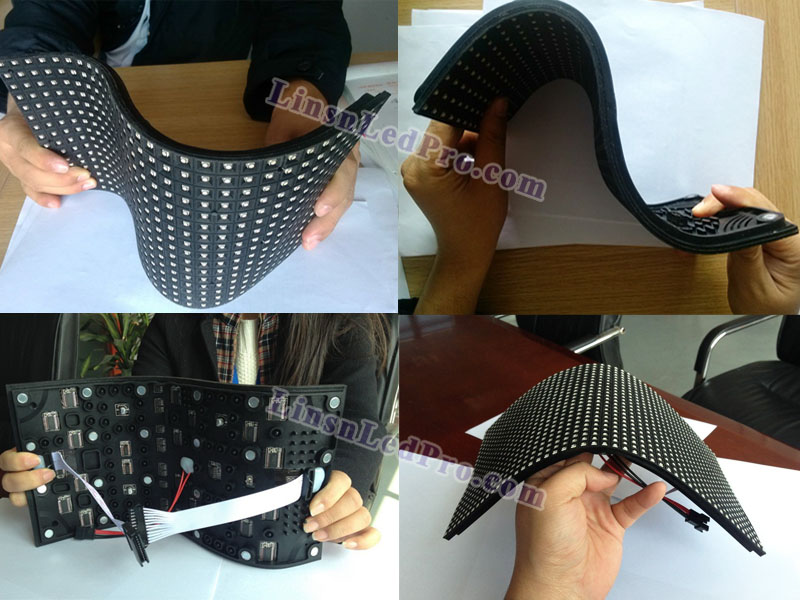

- Super flexible---flat, curved or circular shape can all be easily set up;
- Cost effective and excellent performance;
- Ultra thin and light, 15mm depth and 0.52kg per tile;
- Less power consumption and superb heat dissipation;
- Easy Installation---magnetic design enables to attach on any mental sheet;
- The structure can be purchased along with the screen or sorted out locally;
- Multi-function---a small module in hand to meet your Do-it-Yourself demands.

Specifications:

1 Pixel pitch
10mm
2 Pixel density
10,000 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD3528, 3in1
4 Module size (L*H)
320*160mm
5 Module resolution
32*16 pixels
6 Panel size (L*H*D)
Flexible, as needed
7 Panel resolution
Flexible, as needed
8 LED display weight with cabinet
45KG/sq.m
9 Soft LED display cabinet material
Iron
10 Brightness
≥1,000 nits/sq.m
11 Driving method
1/8 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
>10M
14 Refresh rate
≥1,200Hz
15 Grey scale
≥4,096 levels
16 Display colors
>16.7M
17 Power consumption
Max.: 800W/sq.m, Avg.:320W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP43
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28 Compliant standard
CE/UL/RoHS
