Indoor P10 SMD LED Display Signage

  • Indoor LED Display
  • Model: LLP-IFP10MM
  • Leadtime: within 15 Days
  • Warranty: 2 Years

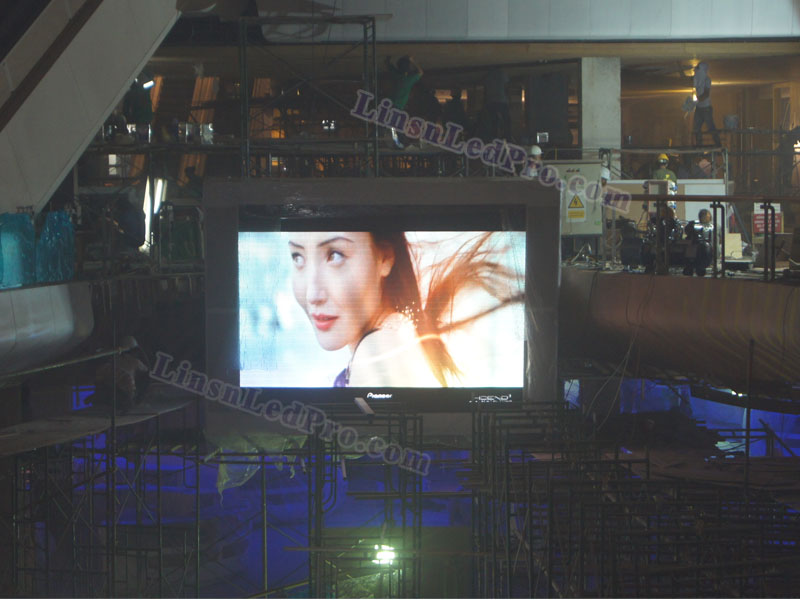

  • Product description: Indoor P10 SMD full color LED display signage is widely placed as fixed installation at shopping malls, airports, arenas,etc, which requires of medium or long range viewing distance.
  • INQUIRY

Indoor P10 SMD LED Display Signage

Features:

- Long life span, electricity saving and less maintenance;
- Installation mode can be mounting, hanging, ceiling, standing, etc;
- Front access or any shape on its panel can be customized;
- Widely placed at big shopping malls, airports, stadiums, concerts, etc;
- Best way to attract passers-by & increase sales in advertising campaigns;
- It can be controlled and monitored at anytime and anywhere via internet;
- Synchronous control for big size or off-line mode for small size at request;
- Support all popular high refresh rate driver ICs and control systems;
- User friendly software operation, programs can be played automatically;
- Compatible with all kinds of signal inputs via led video processor.

Specifications:

1 Pixel pitch
10mm
2 Pixel density
10,000 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD3525, 3-in-1

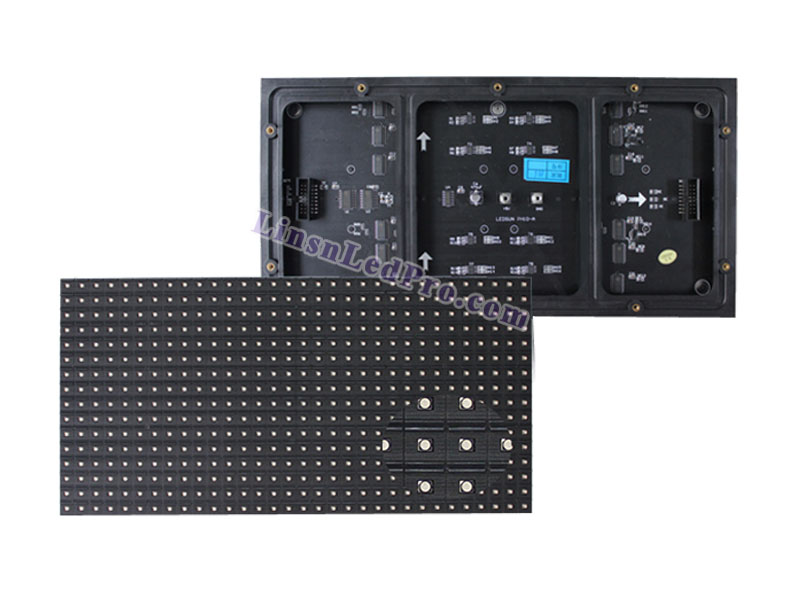

4 LED module size (L*H)
320*160mm
5 LED module resolution
32*16 pixels

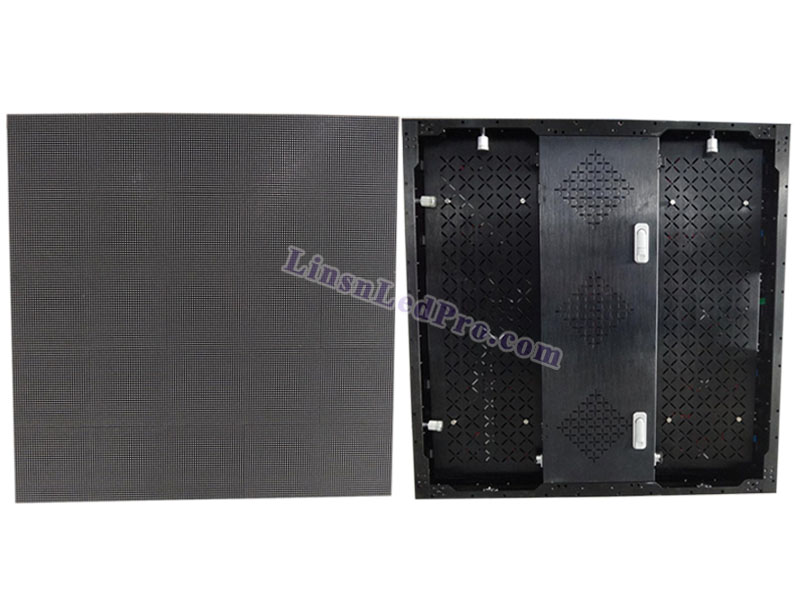

6 LED panel size (L*H*D)
960*960*80mm or as requested
7 LED panel resolution
96*96 pixels
8 LED display signage panel weight
25KG/piece with aluminum alloy
9 LED display signage panel material
Diecasting aluminum/aluminium alloy/iron as requested
10 Brightness
≥1,600 nits/sq.m
11 Driving method
1/4 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
>10M
14 Refresh rate
≥800Hz
15 Grey scale
≥4,096 levels
16 Display colors
>16.7M
17 Power consumption
Max.:1,200W/sq.m, Avg.:480W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP43
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28 Compliant standard
CE/UL/RoHS
