P2.5mm Indoor LED Display Screen

  • Indoor LED Display
  • Model: LLP-IFP2.5MM
  • Pixels: 160,000 dots/sq.m
  • Aluminium LED Display Panel
  • Product description: P2.5mm indoor full color LED display screen can deliver crystal clear image details at extremely close viewing distances, which is a high end solution for indoor fixed applications.
  • INQUIRY

P2.5mm Indoor LED Display Screen

Features:

- Ultra high resolution---160,000 pixels per sq.m;

- Black LEDs---high contrast ratio and vivid colors;

- Long life span and electricity saving;

- Easy set up and convenient maintenance;

- Good protection against dust, moisture, static, etc;

- Brightness is adjustable by software or video processor;

- Calibration technology on the LED lamps is supported;

- Other customized design can be made as requested;

- Control systems supported: LINSN and other popular controllers;

- User friendly software operation, programs played can be digitally edited;

- High compatibility with all kinds of video formats on its software;

-Supports LINSN and other popular control systems.

Specifications:

1 Pixel pitch
2.5mm
2 Pixel density
160,000 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD2121 3in1

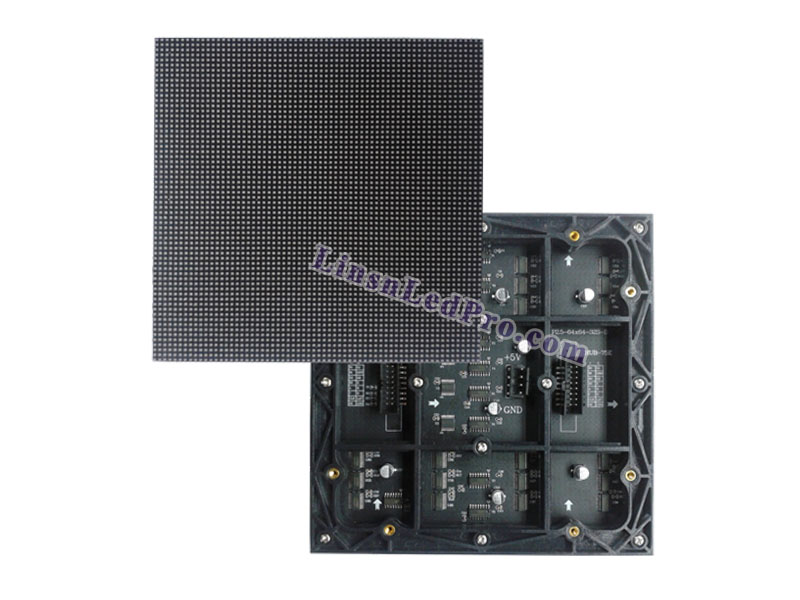

4 LED module size (L*H)
160*160mm
5 LED module resolution
64*64 pixels

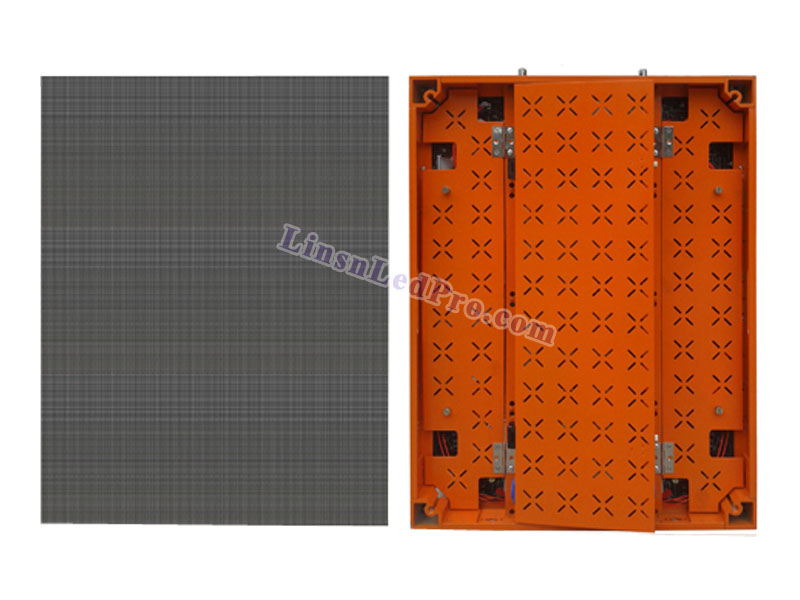

6 LED anel size (L*H*D)
480*640*80mm or as needed
7 LED panel resolution
192*256 pixels
8 LED display screen panel weight
8.5 KG/piece
9 LED display panel material
Aluminum alloy
10 Brightness
≥1,500 nits/sq.m
11 Driving method
1/32 scan or 1/16 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
>2.5M
14 Refresh rate
>1,200Hz
15 Grey scale
≥4,096 levels
16 Display colors
>16.7M
17 Power consumption
Max.:980W/sq.m, Avg.:392W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP43
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28 Compliant standard
CE/UL/RoHS
