  •  Indoor P1.66 HD LED Video Wall Monitor
  •  Indoor P1.66 HD LED Video Wall Monitor
 Indoor P1.66 HD LED Video Wall Monitor Indoor P1.66 HD LED Video Wall Monitor

Indoor P1.66 HD LED Video Wall Monitor

  • HD LED Video Wall
  • Application: Indoor
  • Pixels: 360,000 dots/sq.m
  • Contrast Ratio: 3000:1
  • Product description: Indoor P1.66 HD LED video wall monitor is a small pixel pitch LED display. P1.66mm can create uniform, high-quality images with accurate color depth at any brightness level - including low brightness

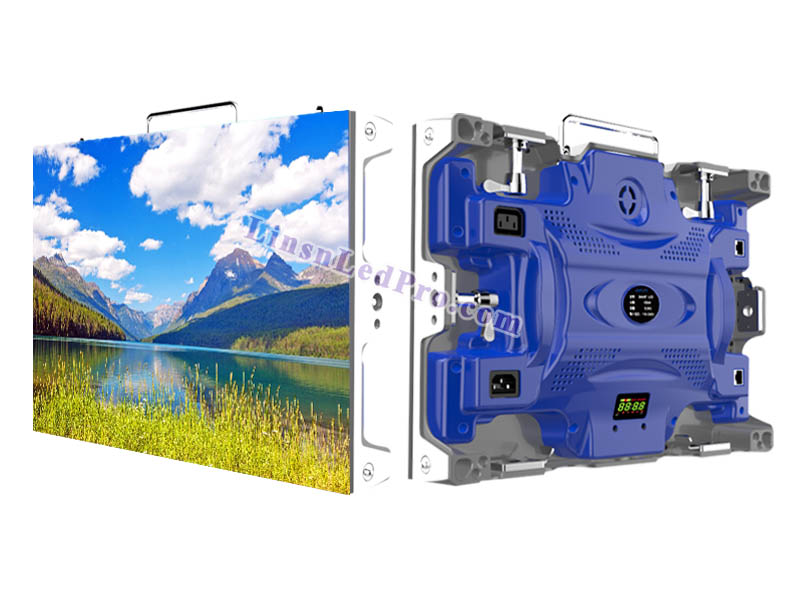

Indoor P1.66 HD LED Video Wall Monitor

Indoor P1.66 HD LED video wall monitor excels in reliability, quality and easy maintenance. Furthermore, its fast setup time, minimal wiring, reduced tweaking and easy serviceability. P1.66mm LED video wall is the ideal solution for any indoor high end LED display application.


Strong stability: adopts high-quality components and sophisticated processing technology, effectively reduce the death rate. Power supply signal dual backup system to ensure long-term stable operation, support 7 * 24 hours of work.

High refresh rate: No stripes for HD camera shooting

Low light high gray: can still show the perfect gray scale performance when brightness down to 20%. Low brightness display is close perfect gray scale, the display effect is more vivid than traditional display screen.

Good consistency: high-intensity structure of fine-tuning technology to achieve the entire screen seamless stitching. By fine-tuning, eliminate bright lines. Point-by-point calibration technology to keep the entire screen brightness and color in excellent uniformity.

High contrast: high-quality black LED and ripple black sub-black mask, the image is clear and sharp, colors are bright.

Low reflection: adopts black matte lights and corrugated absorber mask, in light environment , there issmall reflection on the screen and it is still clearly visible.

Intelligent brightness adjustment: automatically adapt to light-sensitive adjustment equipment, will not affect the display screen due to ambient light. Almost no loss of gray in 50~ 800 nit brightness .

Ultra-wide viewing angle: LED screen body angle has 160 °/160 °, the angle of the screen is evenly clear and natural.


1 Pixel pitch
2 Pixel density
360,000 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD1010, 3in1
4 LED module size (L*H)
5 LED module resolution

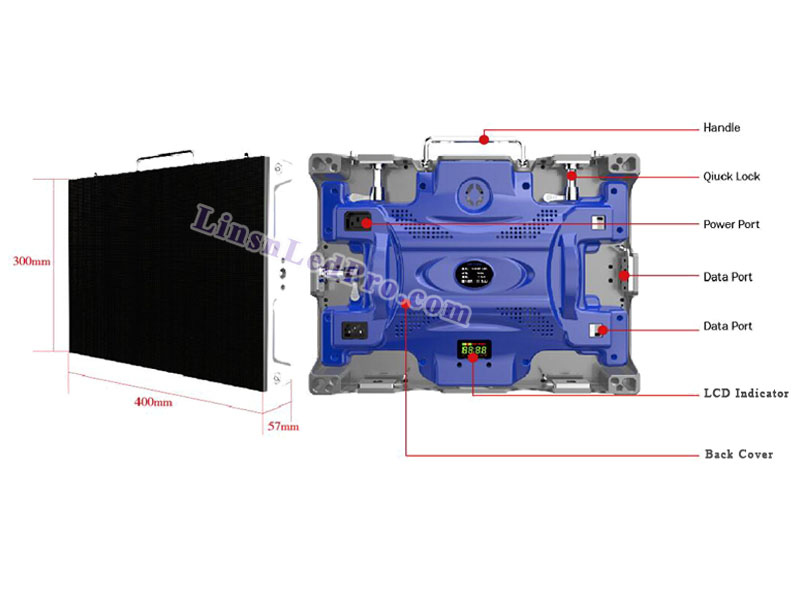

6 LED panel size (L*H*D)
7 LED panel resolution
240*180 pixels
8 LED video monitor panel weight
9 LED video wall panel material
Diecasting aluminum
10 Brightness
≥1,000 nits/sq.m
11 Driving method
1/32 scan
12 Viewing angle
≥145°H /145°V
13 Best viewing distance
14 Refresh rate
15 Grey scale
≥4,096 levels
16 Display colors
17 Power consumption
Max.:680W/sq.m, Avg.: 272W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥75,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista

Video input/with video processor:


28 Compliant standard
