  • RGBLINK VSP 628PRO LED Video Processor

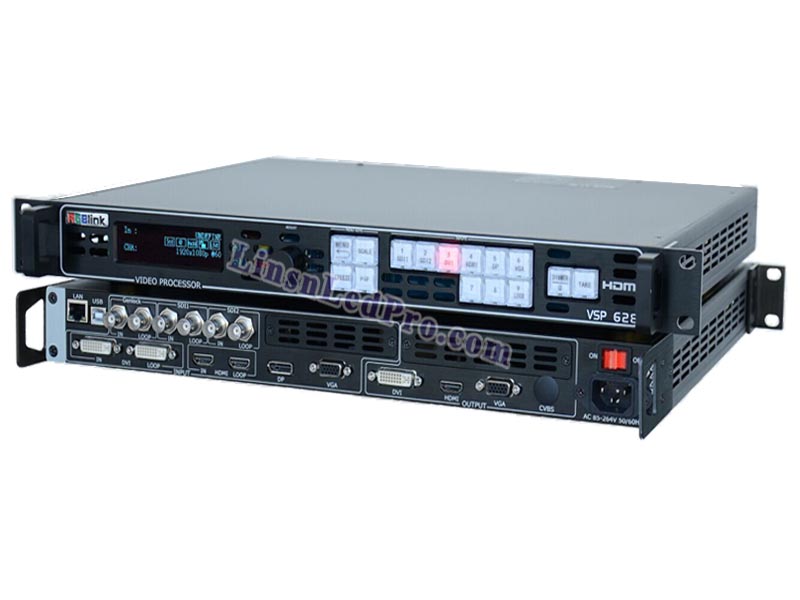

RGBLINK VSP 628PRO LED Video Processor

RGBLINK VSP 628PRO LED Video Processor

  • Model: RGBLIN VSP 628PRO
  • In Stock for Sale
  • Can Be Ordered Online
  • DHL Worldwide Shipping
  • Product description: RGBLINK VSP 628PRO is an advanced high performance all-in-one LED video processor,video scaler, scan converter, switcher and transcoder converting any input signal format to any output signal format.

RGBLINK VSP 628PRO LED Video Processor

RGBLINK VSP 628PRO LED video processor supports composite, component, VGA, DVI signal and dual link, HDMI, DisplayPort and SD/HD/3G-SDI signal formats. Loop-through outputs are provided for the DVI and SDI input and Genlock signals. With features like LOGO capture and standard test pattern built in, 3D processing, HDCP and EDID management, Web page control interface seamless switching between the inputs, VSP 628PRO is one of the most advanced and flexible signal processor in the industry.

VSP 628PRO is created on module based structure, its standard version comes with all the features you need and expect to find in old versions. In addition to the standard features, with different modules, you can reach more possibility and application range.


1. Any signal input any signal output
2. LOGO capture and standard test pattern built in
3. 3D signals input and output processing
4. HDCP and EDID management
5. Seamless switching between any signals
6. Support dual 3K output
7. Preview and program outputs separately
8. Independently one input to two separately output conversion
9. User-defined output resolution
10. Genlock and reference input
11. Module based and expendable



1 x Genlock(with loop)

2 x SDI(each with loop)

1 x DVI(with loop)

1 x HDMI(with loop)

1 x VGA

1 x Displayport

2xSDI(Each with loop)-SDI Option Module



1 x DVI

1 x HDMI

1 x VGA

1 x CVBS-CVBS Option Module

2 x SDI-OS2 Option Module

1 x Fiber+SDI+HDBaseT – Fiber Option Module

Communication Ports


USB   2.0

Net Size


Package size


Net weight


Package Weight


Work Temperature


Relative Humidity
