Outdoor P6.67 SMD HD Front Service LED Display

Outdoor P6.67 SMD HD Front Service LED Display

  • Front Serivce LED Display
  • Model: LLP-OSDP6.67MM
  • Pixels: 22,479 dots/sq,m
  • View Angle: 140°H /140°V
  • Product description: Outdoor P6.67 SMD HD front service LED display with 320mm*320mm front access LED module can create crystal clear image details at very close viewing distances.
  • INQUIRY

Outdoor P6.67 SMD HD Front Service LED Display

Outdoor P6.67 SMD HD front service LED display equipped with 320mm x 320mm module size, is specially developed for dual maintenace on both front and back sides of the LED display panels with limited space. It is a superior solution in application for outdoor branding and adveritising.

Features:

- Ultra high resolution&brightness: 22,500 dots/sq,m, 6,800 nits/sq.m;

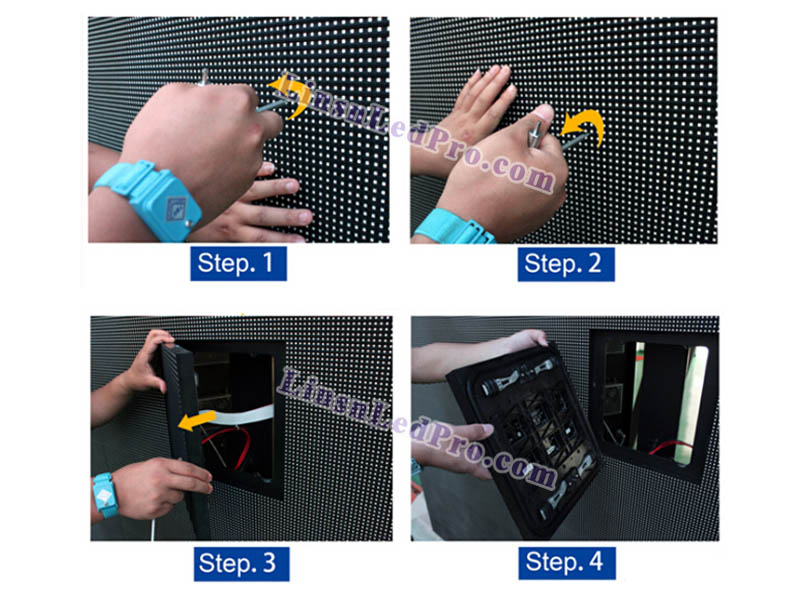

- Available in both front and rear access for maintenance;
- Wide viewing angles and excellent color uniformity;
- Stable performance and great heat dissipation;
- Low Power consumption and long life span;
- IP65/54 protection rating to perfectly work in all weather conditions;
- Synchronous control with PC or asynchronous mode without PC for small size screens;
- Brightness is adjustable manually or automatically against to light changing;
- All programs can be digitally edited and played in a loop automatically on the timetable;
- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);
- Can be controlled and monitored with camera at any time & anywhere via internet access;
- Online detecting and fault informing is optional with monitored card;
- Supports all windows operation systems-XP,7/8,Vista for its software;
- Supports LINSN and other popular control systems.

Specifications:

1 Pixel pitch
P6.67mm
2 Pixel density
22,500 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD2727 3in1
4 LED module size (L*H)
320x 320mm
5 LED module resolution
48*48 pixels
6 LED cabient size (L*H*D)
960*960*155mm or as needed
7 LED cabinet resolution
144*144 pixels
8 LED display cabinet weight
65 KG/sq.m
9 LED display cabinet material
Cold rolled steel sheet
10 Brightness
≥6,800 nits/sq.m
11 Driving method
1/6 scan
12 Viewing angle
140°H /140°V
13 Best viewing distance
>6.6M
14 Refresh rate
>600Hz
15 Grey scale
≥8,192 levels
16 Display colors
>16.7M
17 Power consumption
Max.:1,000W/sq.m, Avg.:400W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP65/IP54
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc

28 Compliant standard
CE/UL/RoHS
