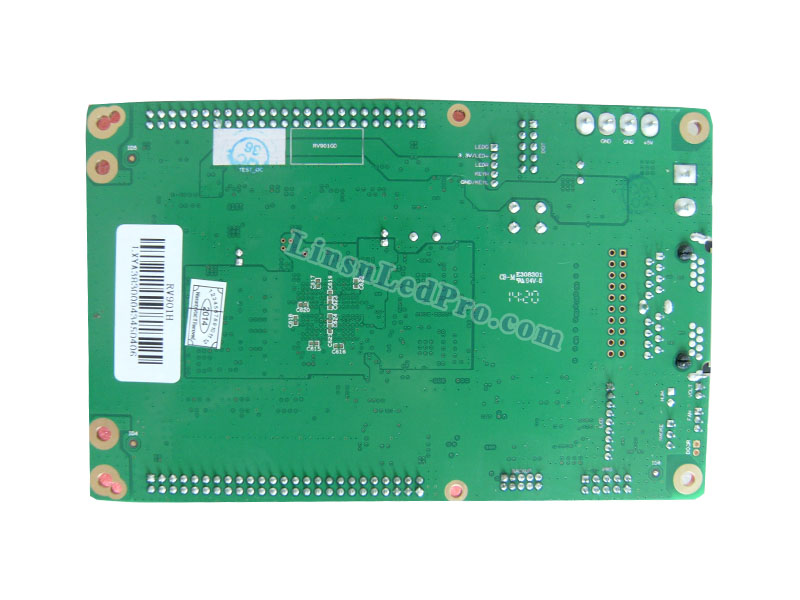

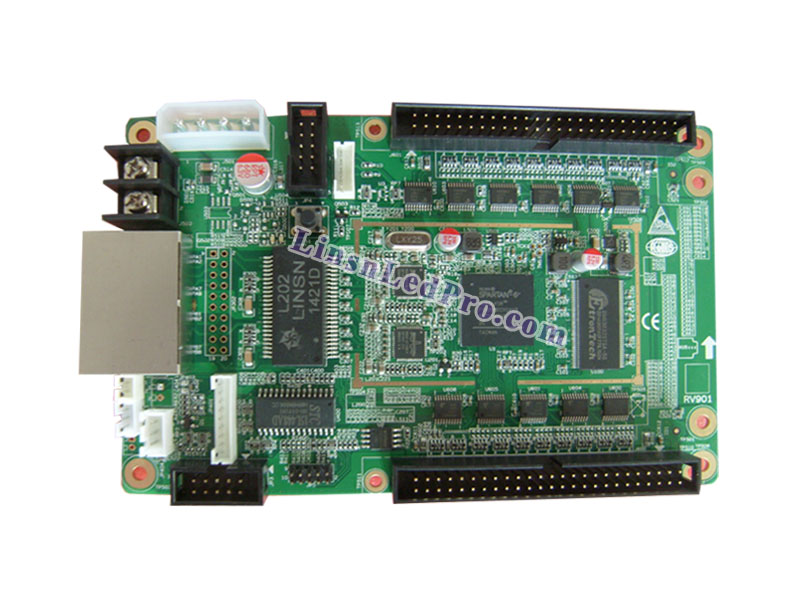

LINSN RV901H LED Video Wall Receiving Card
Linsn RV901H (921H/931H）is designed on the basis of the 8th generation system RV801 series. Compared with RV801 and RV901, it has all functions of RV801. Besides, RV901 is added with the following
functionality:
1. Support 12-bit HDMI colors input (required the 9th generation sending card--TS901)
2. Using 18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue)
3. Single card maximum supports 1024X256 pixels, and 1024 grades single pixel chromaticity correction
4. Supports single-card color space conversion
5. Support configuration file readback
6. Support program replication
7. Supports hot backup with dual receiver cards for demanding high performance
8. Supports pixel fault detection (requires a dedicated chip support)
9. Support network cable BER test
10. Support flat cable fault detection
11. Support the cabinet-door monitoring (open/close)
12. Two lines fan-speed monitoring
13. Three lines Voltage monitoring: one for the system, two for cabinet power
14. Temperature monitoring
15. Humidity monitoring (humidity sensor sold separately)
16. Smoke monitoring (smoke module sold separately)
17. In line with EU standards CE-EMC
