LINSN EB701 LED Display Sender HUB

Model: LINSN EB701
In Stock for Sale
Can Be Ordered Online
DHL Worldwide Shipping
Product description: LINSN EB701 sender Hub is specifically designed for multiple displays or large screen. It has one input port and eight output ports. It supports one input /eight outputs or two inputs/ four outputs.
INQUIRY

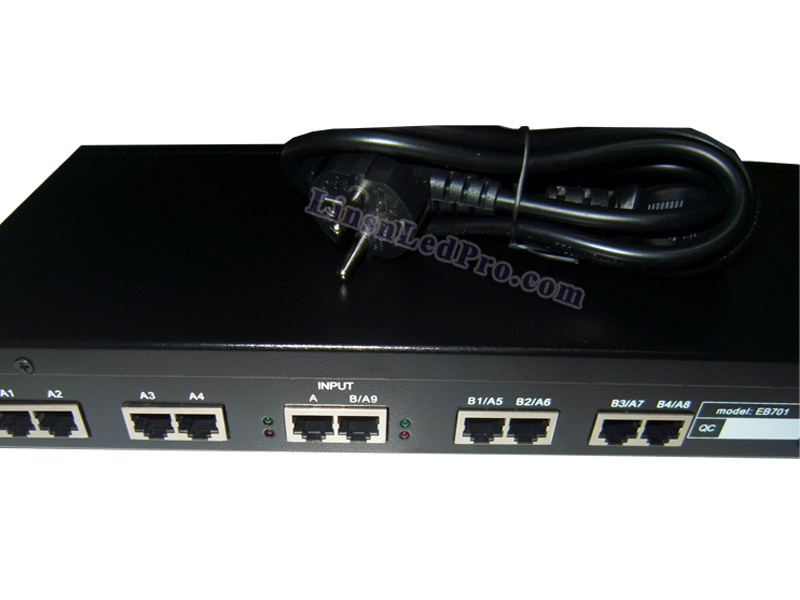

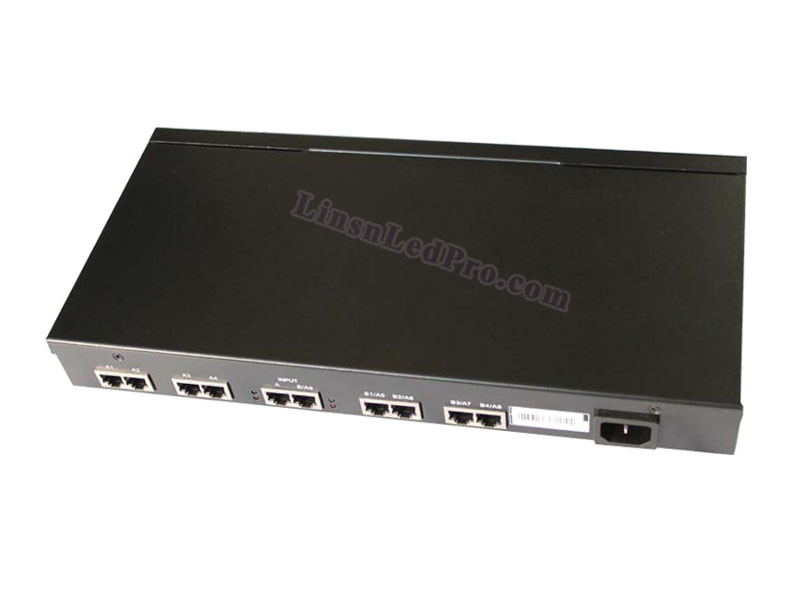

LINSN EB701 LED Display Sender HUB

Box Size: 356mm*172mm*44.5mm
Power Supply: 100~240V 50~60Hz 0.6A

Light indicators: blinking green light for signal, red light for power

EB701, the splitter has the following features:

1. To minimize signal delay or loosing problem caused by failure of receiving cards or cables;
2. Easy to locate the faulty cabinets;

3. Keep other led display cabinets working while having maintenance with the defective cabinets.

Splitter works in two ways:

1. One splitter-standalone: It can have one or two inputs (A/B or A&B ports).
One output (U or D port) from sending card to splitter A/B port, can be divided into max 9 outputs (A1~A9);
Two inputs (U and D ports) from sending card to A and B ports, each input is divided into four outputs, that is A input is divided into A1, A2, A3, A4 outputs and B input is divided into B1, B2, B3 and B4 outputs.

2. Two or more splitters work together. One output of sending card to A port of splitter, then splitter B port outputs to another splitter A port, Maximum eight splitters can work together.

On the display connection of LED studio:

Main cable: select the output port of sending card.

1 No. sender U cable means number one sending card, U port
4 No. sender U cable means number four sending card, U port
Four 802 sending cards can be cascaded with the switch on.
Extension cable: output number of splitter port.
Under same Main, extension cable starts from 1, then 2, maximum to 9.
Under different Main, extension cable starts from 1 for each main, maximum to 4.
Order No.: receiving card order number.
Within same extension number, order number goes from 1, then 2 and continues to last number.

With different extension number, each order number starts from 1.
