P10 Outdoor DIP Full Color LED Display Screen

  • Outdoor LED Display
  • Model: LLP-ODFP10MM
  • Pixels: 10,000 dots/sq.m
  • Brightness ≥7,500 nits/sq.m
  • Product description: P10 DIP full color LED display is a perfect choice for outdoor applications requiring ultra high image clarity at close viewing distance. Column, roof top, circular, wall mounted, vehicle, hanging, d
  • INQUIRY

P10 Outdoor DIP Full Color LED Display Screen

P10 outdoor DIP full color LED display screen is commonly known as column/post, roof top, curved, wall mounted, circular, double sided or stadium LED display, etc. The cabinet size and shape can be customized according to customer's needs.

Features:

- Ultra high resolution and brightness;

- Stable performance and great heat dissipation;

- Easy installation and less maintenance;

- Low Power consumption and long life span;

- IP65/54 protection rating to perfectly work in all weather conditions;

- Synchronous control with PC or asynchronous mode without PC for small size screens;

- Brightness is adjustable manually or automatically against to light changing;

- All programs can be digitally edited and played in a loop automatically on the timetable;

- Compatible with all kinds of signal inputs via led video processor (VGA, HDMI, SDI, DVD, TV, etc);

- Can be controlled and monitored with camera at any time & anywhere via internet access;

- Online detecting and fault informing is optional with monitored card;

- Supports all windows operation systems-XP7/8/Vista for its control software;

- Supports LINSN and other popular control systems.

Specifications:

1 Pixel pitch
10mm
2 Pixel density
10,000 pixels/sq.m
3 Pixel configuration
1R1G1B, DIP346

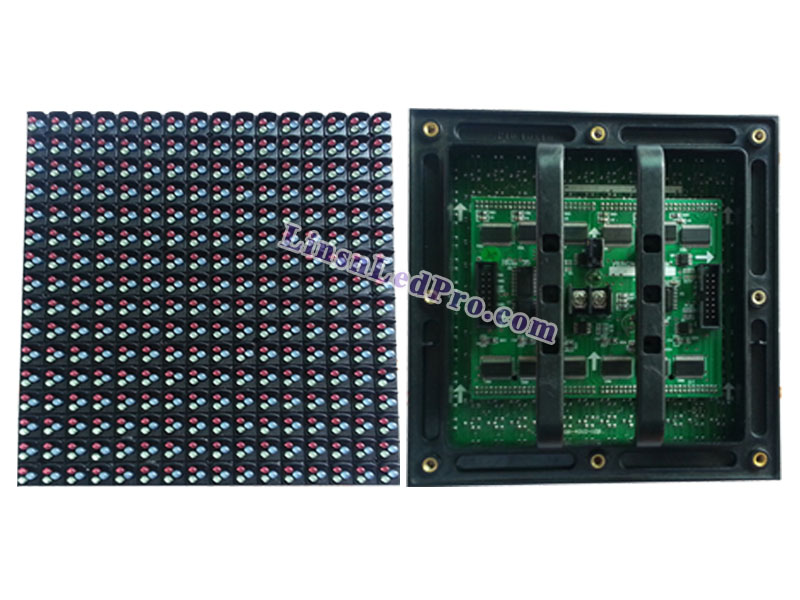

4 LED module size(L*H)
160*160mm
5 LED module resolution
16*16 pixels

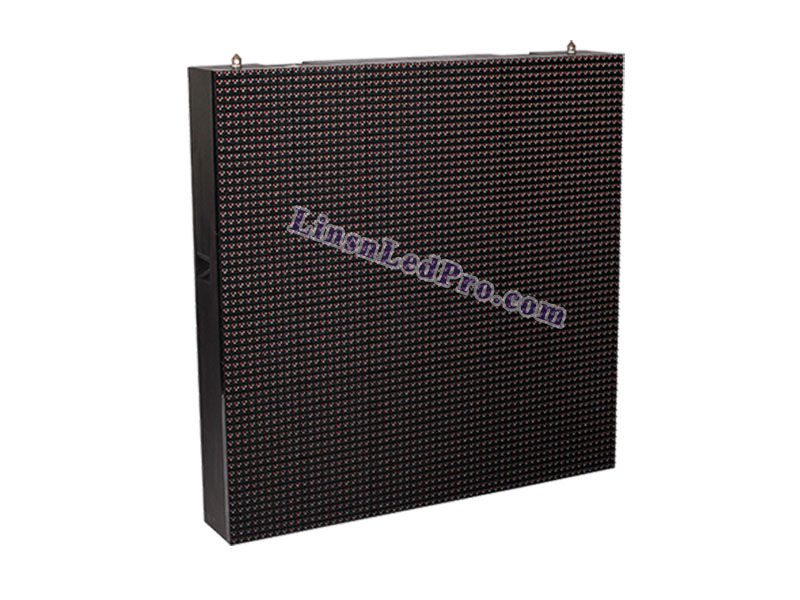

6 LED cabinet size(L*H*D)
960*960*155mm or as needed
7 LED cabinet resolution
96*96 pixels
8 LED display cabinet weight
65 KG/sq.m

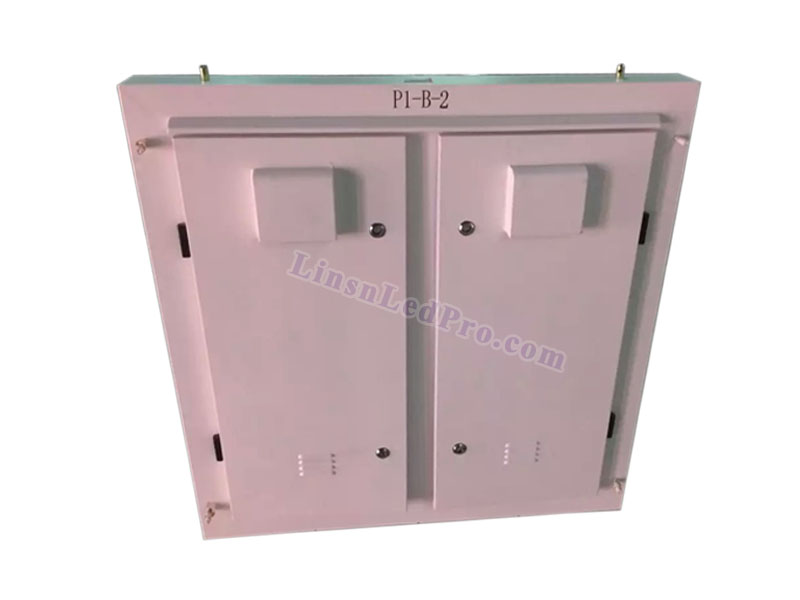

9 LED display cabinet material
Cold rolled steel sheet
10 Brightness
≥7,500 nits/sq.m
11 Driving method
1/4 scan
12 Viewing angle
110°H /60°V
13 Best vewing distance
>10M
14 Refresh rate
>600Hz
15 Grey scale
≥8,192 levels
16 Display colors
>16.7M
17 Power consumption
Max.:1,000W/sq.m, Avg.:400W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP65/IP54
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc

28 Compliant standard
CE/UL/RoHS
