  • Indoor P6 SMD Rental LED Display System
  • Indoor P6 SMD Rental LED Display System
Indoor P6 SMD Rental LED Display System Indoor P6 SMD Rental LED Display System

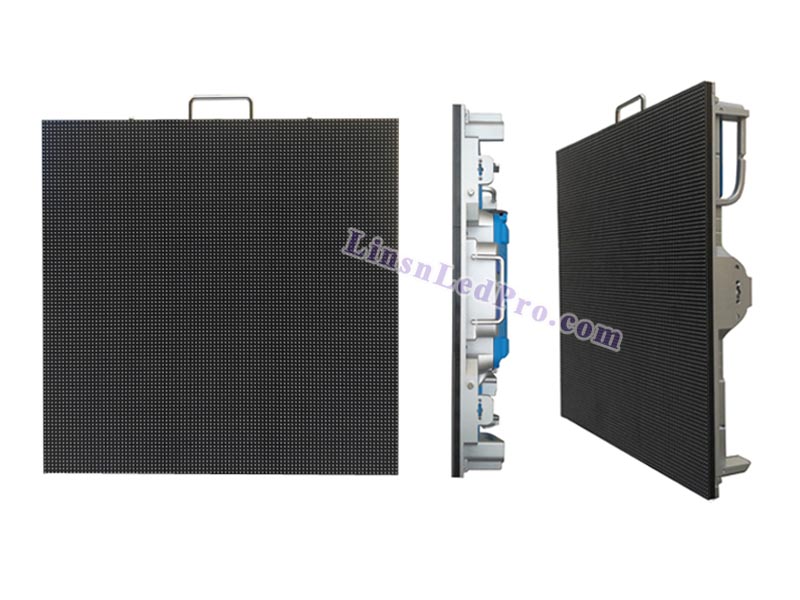

Indoor P6 SMD Rental LED Display System

  • Rental LED Display
  • Model: LLP-IRP6mm
  • Leadtime: within 15 Days
  • Warranty: 2 Years
  • Product description: Indoor P6 SMD rental LED display system is geared with magnisium alloy cabinet in 576x576x80mm size. It is one of the most affordable solution for stage and rental applications.
  • INQUIRY

Indoor P6 SMD Rental LED Display System

Features:
- Magnisium alloy panel enables seamless connection;
- Ultra-slim &light LED panel, perfect for both rental and fixed use;
- Speady setup and teardown with fast locks, easy maintenance;
- Large viewing angle-H/V(145°/145°) and high contrast ratio;
- Excellent heat dissipation and low power consumption;
- Suitable for all kinds of indoor events with close viewing distances;
- User friendly software operation, programs played can be digitally set;
- Highly compatible with led video processor on multiple signal inputs;
- Support LINSN and other popular control systems in the market.

Specifications:

1 Pixel pitch
6mm
2 Pixel density
27,777 pixels/sq.m
3 Pixel configuration
1R1G1B, SMD3528, 3in1
4 LED module size (L*H)
192*192mm
5 LED module resolution
32*32 pixels

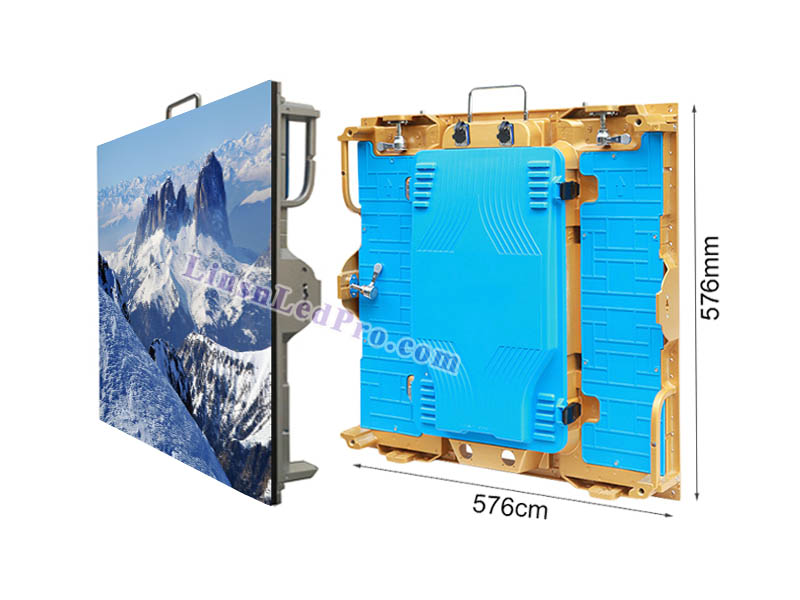

6 LED panel size (L*H*D)
576*576*80mm
7 LED panel resolution
96*96 pixels
8 LED display system panel weight
9KG/piece
9 LED system panel material
Magnisium alloy
10 Brightness
≥1,500 nits/sq.m
11 Driving method
1/16 scan
12 Viewing angle
145°H /145°V
13 Best viewing distance
>6M
14 Refresh rate
800Hz
15 Grey scale
≥4,096 levels
16 Display colors
>16.7M
17 Power consumption
Max.:1,200W/sq.m, Avg.:480W/sq.m
18 Input voltage
110~230V/AC (±10%)
19 Input power frequency
50/ 60Hz
20 IP rating (front/rear)
IP43
21 Operating environment
Temperature: -20°C~+50°C, Humidity: 10%~95%
22 Storage environment
Temperature:-40-50°C, Humidity: 10-90%
23 Life span (50% brightness)
≥100,000 hours
24 Control system
LINSN or other popular control systems
25 Transmission distance
Multi mode fiber <500m, single mode fiber <30Km, internet cable <100m
26 Operating system
Windows XP/Win7//8/Vista
27

Video input/with video processor:

Rgblink,Vdwall,Magnimage,etc

VGA,DVI,DHMI,SDI,RGB,CVBS,HD-SDI,etc
28 Compliant standard
CE/UL/RoHS
